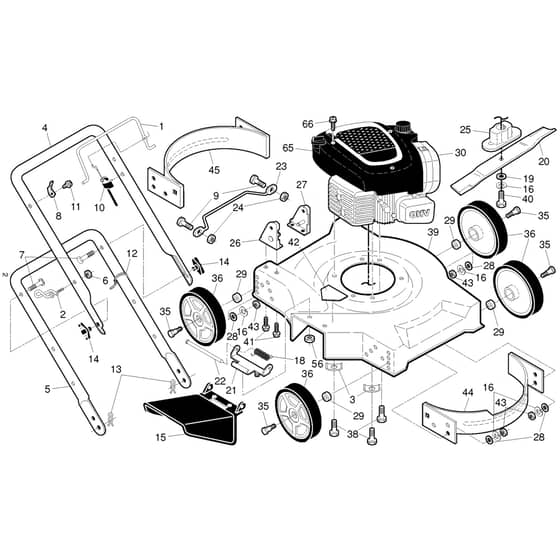

McCulloch M51-125 - 96111003500 - 2013-01 - Product Complete Parts Diagram

Name: McCulloch M51-125 - 96111003500 - 2013-01 - Product Complete Parts Diagram
SKU: m51_125_96111003500_2013_01_product_complete-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M51-125 - 96111003500 - 2013-01 - Product Complete Parts Diagram

Description

McCulloch M51-125 - 96111003500 - 2013-01 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 19 47-88 Available to backorder	Guide	£3.42 £2.85
6	HV532 05 06-75 Available to backorder	Nut	£2.34 £1.95
7	HV532 19 15-74 Available to backorder	Screw	£5.82 £4.85
8	HV532 43 00-34 Available to backorder	Bracket	£6.13 £5.11
10	HV532 44 09-34 Available to backorder	Cable	£19.40 £16.17
11	HV532 17 88-48 Available to backorder	Screw	£1.20 £1.00
13	HV532 05 17-93 Available to backorder	Pin	£4.78 £3.98
14	HV532 18 55-77 Available to backorder	Knob	£7.76 £6.47
15	HV596 21 52-01 Available to backorder	Guard	£13.73 £11.44
16	HV596 23 87-01 Available to backorder	Washer	£2.65 £2.21
18	HV532 41 18-32 Available to backorder	Spring	£5.72 £4.77
19	HV532 85 10-74 Available to backorder	Washer	£4.80 £4.00
20	HV532 14 51-06 Available to backorder	Blade	£33.96 £28.30
21	HV532 08 86-02 Available to backorder	Deflector	£19.66 £16.38
22	HV532 15 02-15 Available to backorder	Shaft	£8.36 £6.97
23	HV532 15 41-47 Available to backorder	Guard	£20.35 £16.96
24	HV532 06 91-80 Available to backorder	Nut	£1.82 £1.52
25	HV581 54 79-01 Available to backorder	Adapter	£20.48 £17.07
28	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
40	HV532 85 10-84 Available to backorder	Screw	£6.97 £5.81
43	HV873 22 06-00 Available to backorder	Nut	£3.62 £3.02
44	HV588 54 88-01 Available to backorder	Front Baffle	£32.36 £26.97
56	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
65	HV580 44 56-01 Available to backorder	Shroud	£27.18 £22.65
66	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
