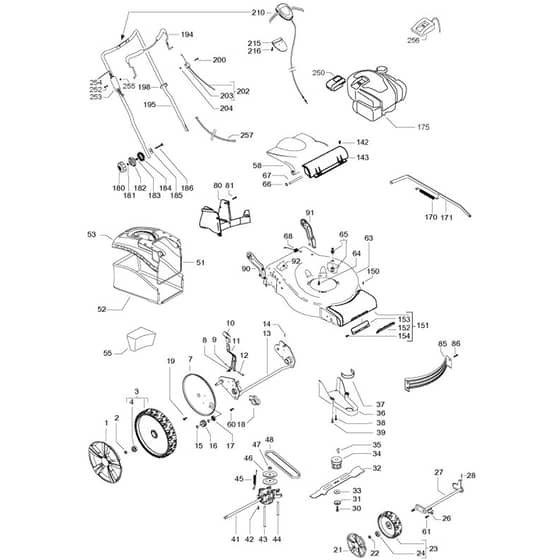

McCulloch M46-160 AWREX - 96762180202 - 2018-02 - Product Complete Parts Diagram

Name: McCulloch M46-160 AWREX - 96762180202 - 2018-02 - Product Complete Parts Diagram
SKU: m46_160_awrex_96762180202_2018_02_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M46-160 AWREX - 96762180202 - 2018-02 - Product Complete Parts Diagram

Description

McCulloch M46-160 AWREX - 96762180202 - 2018-02 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 39 66-01 Out of stock	Hub Cap D.280	£15.97 £13.31
2	HV504 85 78-01 Out of stock	Nut M8+ Self Locking+ Flanged	£3.43 £2.86
3	HV574 45 12-02 Out of stock	Wheel Assy D.280	£30.01 £25.01
7	HV504 53 99-01 Out of stock	Hub Cap D.280	£12.73 £10.61
8	HV583 95 13-02 Out of stock	Spring	£4.18 £3.48
9	HV531 20 74-08 Out of stock	Pin Retaining Screw	£3.08 £2.57
10	HV580 46 24-01 Out of stock	Knob	£5.70 £4.75
11	HV582 75 93-01 Out of stock	Lever Assy	£12.24 £10.20
12	HV587 19 82-01 Out of stock	Pin	£4.66 £3.88
13	HV510 09 28-01 Out of stock	Rear Axle	£88.62 £73.85
14	HV531 20 66-53 Out of stock	Pin	£3.11 £2.59
15	HV531 20 87-72 Out of stock	Washer	£1.91 £1.59
16	HV582 70 17-01 Out of stock	Pinion	£22.58 £18.82
17	HV531 20 87-78 Out of stock	Bearing	£5.21 £4.34
18	HV531 20 59-44 Out of stock	Support	£6.70 £5.58
19	HV531 20 78-56 Out of stock	Screw 5x10	£1.19 £0.99
21	HV574 39 64-01 Out of stock	Hub Cap D.190	£9.78 £8.15
23	HV574 45 09-02 Out of stock	Wheel Assy D.190	£23.59 £19.66
26	HV577 38 42-01 Out of stock	Support	£7.46 £6.22
27	HV504 85 65-01 Out of stock	Front Axle Assy	£61.31 £51.09
30	HV531 20 80-08 Out of stock	Screw 3/8"	£5.65 £4.71
31	HV525 46 32-02 Out of stock	Washer	£2.62 £2.18
33	HV525 42 31-01 Out of stock	Washer	£2.94 £2.45
34	HV504 59 12-01 Out of stock	Blade Support	£19.38 £16.15
35	HV504 59 14-01 Out of stock	Key	£5.15 £4.29
36	HV589 02 31-01 Out of stock	Guard	£23.26 £19.38
37	HV501 18 90-02 Out of stock	Belt Guide	£18.66 £15.55
38	HV817 41 13-12 Out of stock	Screw	£5.38 £4.48
41	HV504 54 14-02 Out of stock	Gearbox	£110.18 £91.82
42	HV510 03 75-01 Out of stock	Screw 4x16+ Self Threading	£1.19 £0.99
43	HV544 93 44-01 Out of stock	Belt Guide	£7.70 £6.42
44	HV544 93 43-01 Out of stock	Belt Guide	£6.43 £5.36
45	HV544 93 47-01 Out of stock	Spring	£3.71 £3.09
46	HV544 44 44-01 Out of stock	Pulley	£15.97 £13.31
48	HV504 03 48-01 Out of stock	Belt Z28 10x710	£18.25 £15.21
51	HV574 86 94-01 Out of stock	Frame	£15.56 £12.97
52	HV574 86 96-02 Out of stock	Grassbag	£57.96 £48.30
53	HV574 61 03-01 Out of stock	Grassbag	£38.60 £32.17
55	HV579 67 92-01 Out of stock	Plug	£34.39 £28.66
58	HV574 61 02-01 Out of stock	Hatch	£35.26 £29.38
60	HV531 20 66-77 Out of stock	Screw 4.8x19+ Self Threading	£1.39 £1.16
61	HV525 43 31-01 Out of stock	Screw 4x16+ Self Threading	£1.01 £0.84
65	HV531 20 58-48 Out of stock	Connector 1/2"	£7.94 £6.62
66	HV584 81 69-03 Out of stock	Lockwasher	£0.66 £0.55
67	HV531 21 14-41 Out of stock	Tie Rod	£7.93 £6.61
68	HV531 21 18-40 Out of stock	Spring	£4.06 £3.38
80	HV597 00 09-01 Out of stock	Baffle	£23.46 £19.55
85	HV589 00 87-01 Out of stock	Baffle	£24.08 £20.07
86	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
90	HV582 75 06-02 Out of stock	Handle Bracket Right	£26.93 £22.44
91	HV582 75 02-02 Out of stock	Handle Bracket Left	£26.93 £22.44
92	HV582 75 89-01 Out of stock	Hexagon Nut Flange M8	£1.24 £1.03
142	HV576 13 60-06 Out of stock	Screw M5x8	£1.36 £1.13
143	HV579 30 09-01 Out of stock	Seal	£18.72 £15.60
151	HV575 56 21-04 Out of stock	Front Cover Assy	£35.86 £29.88
152	HV574 37 52-01 Out of stock	Cover (151)	£6.01 £5.01
153	HV574 72 17-01 Out of stock	Attachment Plate (151)	£2.81 £2.34
154	HV575 95 57-01 Out of stock	Screw Itxpant (151)	£1.37 £1.14
170	HV579 24 53-02 Out of stock	Spring	£4.27 £3.56
171	HV580 96 33-01 Out of stock	Rod	£13.27 £11.06
180	HV580 42 43-01 Out of stock	Knob	£10.55 £8.79
181	HV531 20 49-22 Out of stock	Washer	£2.11 £1.76
183	HV531 21 14-76 Out of stock	Spring	£3.43 £2.86
184	HV531 21 14-73 Out of stock	Segment Inner	£14.36 £11.97
185	HV531 21 15-81 Out of stock	Plate	£4.60 £3.83
186	HV581 25 95-01 In stock	Screw Rsqm M8x55	£1.36 £1.13
194	HV587 68 93-03 Out of stock	Bail Arm Assy	£12.83 £10.69
195	HV580 33 36-02 Out of stock	Handle	£65.46 £54.55
198	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
202	HV582 19 21-01 Out of stock	Cable Assy	£27.53 £22.94
203	HV531 20 80-43 In stock	Bracket (202)	£1.01 £0.84
210	HV580 68 39-01 Out of stock	Control	£70.33 £58.61
215	HV587 24 93-02 Out of stock	Backplate	£10.01 £8.34
216	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
250	HV588 83 61-01 Out of stock	Battery	£161.38 £134.48
252	HV544 21 84-40 Out of stock	Screw Itxscm	£2.96 £2.47
253	HV587 93 43-01 Out of stock	Starter Assy	£59.92 £49.93
254	HV580 91 52-03 Out of stock	Button	£4.50 £3.75
255	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
