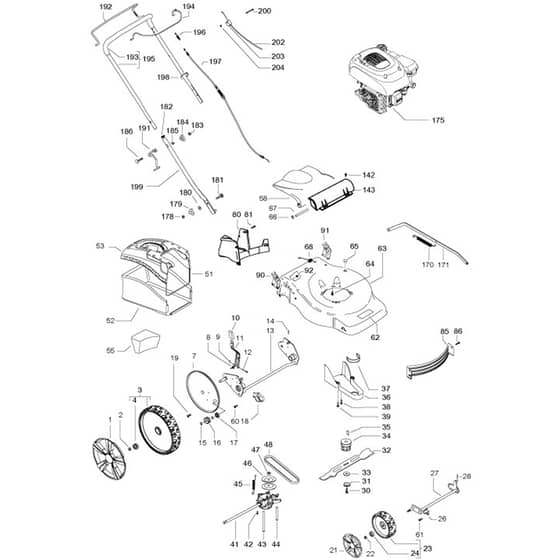

McCulloch M46-145 WRP Classic+ - 2019-03 - Product Complete Parts Diagram

Name: McCulloch M46-145 WRP Classic+ - 2019-03 - Product Complete Parts Diagram
SKU: m46_145_wrp_classic_2019_03_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m46_145_wrp_classic_2019_03_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M46-145 WRP Classic+ - 2019-03 - Product Complete Parts Diagram

Description

McCulloch M46-145 WRP Classic+ - 2019-03 - Product Complete Parts Diagram

	Part No.	Details
1	HV574 39 66-01 Available to backorder	Hub Cap D.280	£17.32 £14.43
2	HV504 85 78-01 Available to backorder	Nut M8+ Self Locking+ Flanged	£3.37 £2.81
3	HV574 45 12-02 Available to backorder	Wheel Assy D.280	£31.44 £26.20
7	HV504 53 99-01 Available to backorder	Hub Cap D.280	£13.46 £11.22
8	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
9	HV531 20 74-08 Available to backorder	Pin Retaining Screw	£3.29 £2.74
10	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
11	HV582 75 93-01 Available to backorder	Lever Assy	£12.82 £10.68
12	HV587 19 82-01 Available to backorder	Pin	£5.63 £4.69
14	HV531 20 66-53 In stock	Pin	£3.91 £3.26
16	HV582 70 17-01 Available to backorder	Pinion	£24.08 £20.07
17	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
18	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
19	HV531 20 78-56 Available to backorder	Screw 5x10	£1.56 £1.30
21	HV574 39 64-01 Available to backorder	Hub Cap D.190	£10.26 £8.55
23	HV574 45 09-02 Available to backorder	Wheel Assy D.190	£24.70 £20.58
27	HV504 85 65-01 Available to backorder	Front Axle Assy	£62.76 £52.30
30	HV531 20 80-08 Available to backorder	Screw 3/8"	£7.06 £5.88
32	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV504 59 12-01 Available to backorder	Blade Support	£20.26 £16.88
35	HV504 59 14-01 Available to backorder	Key	£5.51 £4.59
36	HV589 02 31-01 Available to backorder	Guard	£22.88 £19.07
37	HV501 18 90-02 Available to backorder	Belt Guide	£23.08 £19.23
38	HV817 41 13-12 Available to backorder	Screw	£5.74 £4.78
41	HV504 54 14-02 Available to backorder	Gearbox	£105.36 £87.80
42	HV510 03 75-01 Available to backorder	Screw 4x16+ Self Threading	£1.56 £1.30
43	HV544 93 44-01 Available to backorder	Belt Guide	£9.62 £8.02
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.34 £6.95
45	HV544 93 47-01 Available to backorder	Spring	£4.31 £3.59
46	HV544 44 44-01 Available to backorder	Pulley	£19.97 £16.64
48	HV504 03 48-01 Available to backorder	Belt Z28 10x710	£22.61 £18.84
51	HV574 86 94-01 Available to backorder	Frame	£16.66 £13.88
52	HV574 86 96-02 Available to backorder	Grassbag	£60.90 £50.75
53	HV574 61 03-01 Available to backorder	Grassbag	£42.83 £35.69
55	HV579 67 92-01 Available to backorder	Plug	£36.54 £30.45
58	HV574 61 02-01 Available to backorder	Hatch	£38.83 £32.36
60	HV531 20 66-77 Available to backorder	Screw	£1.79 £1.49
61	HV525 43 31-01 Available to backorder	Screw 4x16+ Self Threading	£1.15 £0.96
62	HV581 02 17-01 Available to backorder	Decal Mcculloch	£3.59 £2.99
63	HV582 89 04-02 Available to backorder	Chassis	£171.00 £142.50
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
67	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
80	HV597 00 09-01 Available to backorder	Baffle	£23.63 £19.69
85	HV589 00 87-01 Available to backorder	Baffle	£25.64 £21.37
86	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
90	HV582 74 98-02 Available to backorder	Handle Bracket Right	£28.20 £23.50
91	HV582 74 67-02 Available to backorder	Handle Bracket Left	£28.20 £23.50
142	HV576 13 60-06 Available to backorder	Screw	£1.56 £1.30
143	HV579 30 09-01 Available to backorder	Seal	£25.84 £21.53
171	HV580 96 33-01 Available to backorder	Rod	£14.10 £11.75
178	HV531 20 79-82 Available to backorder	Nut M8	£2.28 £1.90
179	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
180	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
181	HV531 20 49-21 Available to backorder	Screw M8x25	£5.02 £4.18
182	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
186	HV531 20 70-89 Available to backorder	Screw M8x50	£7.06 £5.88
191	HV504 70 86-01 Available to backorder	Hook	£14.74 £12.28
192	HV504 70 84-01 Available to backorder	Handle	£30.76 £25.63
193	HV531 20 59-89 Available to backorder	Sheating (195)	£7.79 £6.49
194	HV504 70 83-04 Available to backorder	Handle	£30.76 £25.63
195	HV504 85 34-01 Available to backorder	Handle Upper Half	£47.41 £39.51
198	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
199	HV531 20 60-71 Available to backorder	Handle Lower Half	£30.14 £25.12
202	HV582 19 21-02 Available to backorder	Cable Assy	£26.51 £22.09
203	HV531 21 26-89 Available to backorder	Casing	£1.28 £1.07
