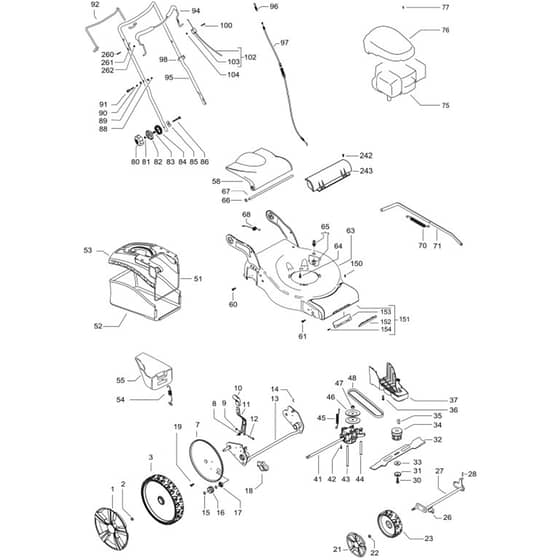

McCulloch M46-125 WR - 96724010104 - 2015-04 - Product Complete Parts Diagram

Name: McCulloch M46-125 WR - 96724010104 - 2015-04 - Product Complete Parts Diagram
SKU: m46_125_wr_96724010104_2015_04_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M46-125 WR - 96724010104 - 2015-04 - Product Complete Parts Diagram

Description

McCulloch M46-125 WR - 96724010104 - 2015-04 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 39 66-01 Out of stock	Hub Cap	£15.97 £13.31
2	HV504 85 78-01 Out of stock	Nut	£3.43 £2.86
3	HV574 41 53-04 Out of stock	Wheel	£36.00 £30.00
7	HV504 53 99-01 Out of stock	Hub Cap	£12.73 £10.61
8	HV583 95 13-02 Out of stock	Spring	£4.18 £3.48
9	HV531 20 84-92 Out of stock	Nut	£1.25 £1.04
10	HV580 46 24-01 Out of stock	Knob	£5.70 £4.75
11	HV581 17 86-01 Out of stock	Lever Assy	£11.54 £9.62
12	HV538 23 58-07 Out of stock	Screw	£2.64 £2.20
13	HV510 09 28-01 Out of stock	Rear Axle	£88.62 £73.85
14	HV531 20 66-53 Out of stock	Pin	£3.11 £2.59
15	HV531 20 87-72 Out of stock	Washer	£1.91 £1.59
16	HV544 34 23-01 Out of stock	Pinion	£10.22 £8.52
17	HV531 20 87-78 Out of stock	Bearing	£5.21 £4.34
18	HV531 20 59-44 Out of stock	Support	£6.70 £5.58
19	HV531 20 78-56 Out of stock	Screw	£1.19 £0.99
21	HV574 39 64-01 Out of stock	Hub Cap	£9.78 £8.15
23	HV574 41 50-04 Out of stock	Wheel	£21.16 £17.63
26	HV577 38 42-01 Out of stock	Support	£7.46 £6.22
27	HV504 85 65-01 Out of stock	Front Axle Assy	£61.31 £51.09
30	HV531 20 80-08 Out of stock	Screw	£5.65 £4.71
31	HV525 46 32-02 Out of stock	Washer	£2.62 £2.18
32	HV581 18 89-10 In stock	Mower Blade	£30.46 £25.38
33	HV525 42 31-01 Out of stock	Washer	£2.94 £2.45
34	HV581 84 30-01 In stock	Blade Support	£18.92 £15.77
35	HV505 29 09-01 Out of stock	Key	£2.33 £1.94
37	HV544 46 22-02 Out of stock	Belt Guard	£24.48 £20.40
41	HV504 54 14-02 Out of stock	Gearbox	£110.18 £91.82
42	HV510 03 75-01 Out of stock	Screw	£1.19 £0.99
43	HV544 93 44-01 Out of stock	Belt Guide	£7.70 £6.42
44	HV544 93 43-01 Out of stock	Belt Guide	£6.43 £5.36
45	HV544 93 47-01 Out of stock	Spring	£3.71 £3.09
46	HV544 44 44-01 Out of stock	Pulley	£15.97 £13.31
48	HV504 03 48-01 Out of stock	Belt	£18.25 £15.21
51	HV574 86 94-01 Out of stock	Frame	£15.56 £12.97
52	HV574 86 96-02 Out of stock	Grassbag	£57.96 £48.30
53	HV574 61 03-01 Out of stock	Grassbag	£38.60 £32.17
54	HV522 85 77-01 Out of stock	Spring	£5.02 £4.18
55	HV531 21 06-17 Out of stock	Mulch Plug	£48.35 £40.29
58	HV574 61 02-01 Out of stock	Hatch	£35.26 £29.38
60	HV531 20 66-77 Out of stock	Screw	£1.39 £1.16
61	HV525 43 31-01 Out of stock	Screw	£1.01 £0.84
63	HV581 29 20-02 Out of stock	Chassis	£168.83 £140.69
64	HV532 15 04-06 Out of stock	Screw	£4.66 £3.88
65	HV531 20 58-48 Out of stock	Connector	£7.94 £6.62
66	HV584 81 69-03 Out of stock	Lockwasher	£0.66 £0.55
67	HV531 21 14-41 Out of stock	Tie Rod	£7.93 £6.61
68	HV531 21 18-40 Out of stock	Spring	£4.06 £3.38
70	HV579 24 53-02 Out of stock	Spring	£4.27 £3.56
71	HV580 96 33-01 Out of stock	Rod	£13.27 £11.06
76	HV580 44 56-01 Out of stock	Shroud	£25.55 £21.29
77	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
80	HV580 42 43-01 Out of stock	Knob	£10.55 £8.79
81	HV531 20 49-22 Out of stock	Washer	£2.11 £1.76
83	HV531 21 14-76 Out of stock	Spring	£3.43 £2.86
84	HV531 21 14-73 Out of stock	Segment	£14.36 £11.97
85	HV531 21 15-81 Out of stock	Plate	£4.60 £3.83
86	HV581 25 95-01 In stock	Screw Rsqm	£1.36 £1.13
88	HV531 20 84-91 Out of stock	Nut	£1.63 £1.36
89	HV514 02 66-00 Out of stock	Washer	£1.93 £1.61
90	HV531 20 71-65 Out of stock	Nut	£1.63 £1.36
91	HV531 20 51-69 Out of stock	Pin Retaining Screw	£2.22 £1.85
92	HV580 65 43-01 Out of stock	Bail	£22.61 £18.84
94	HV587 68 93-03 Out of stock	Bail	£12.83 £10.69
96	HV580 76 19-01 Out of stock	Spring	£6.73 £5.61
98	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
102	HV582 19 21-01 Out of stock	Cable	£27.53 £22.94
103	HV531 20 80-43 In stock	Bracket	£1.01 £0.84
151	HV575 56 21-04 Out of stock	Front Cover Assy	£35.86 £29.88
152	HV574 37 52-01 Out of stock	Cover	£6.01 £5.01
153	HV574 72 17-01 Out of stock	Attachment Plate	£2.81 £2.34
154	HV575 95 57-01 Out of stock	Screw Itxpant	£1.37 £1.14
242	HV576 13 60-06 Out of stock	Screw	£1.36 £1.13
243	HV579 30 09-01 Out of stock	Seal	£18.72 £15.60
261	HV532 43 00-34 Out of stock	Bracket	£6.13 £5.11
