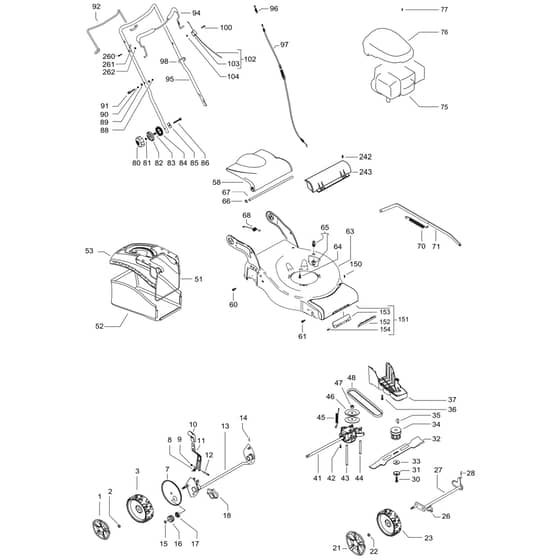

McCulloch M46-125 R - 96717440104 - 2015-04 - Product Complete Parts Diagram

Name: McCulloch M46-125 R - 96717440104 - 2015-04 - Product Complete Parts Diagram
SKU: m46_125_r_96717440104_2015_04_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M46-125 R - 96717440104 - 2015-04 - Product Complete Parts Diagram

Description

McCulloch M46-125 R - 96717440104 - 2015-04 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 39 65-01 Available to backorder	Hub Cap	£12.28 £10.23
2	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
3	HV574 41 52-04 Available to backorder	Wheel	£26.44 £22.03
7	HV504 82 73-01 Available to backorder	Dust Cover	£8.40 £7.00
8	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
9	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
10	HV580 46 24-01 Available to backorder	Knob	£5.83 £4.86
11	HV581 17 86-01 Available to backorder	Lever Assy	£12.04 £10.03
12	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
13	HV504 80 01-01 Available to backorder	Rear Axle	£104.36 £86.97
14	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
17	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
18	HV531 20 59-44 Available to backorder	Support	£8.40 £7.00
21	HV574 39 64-01 Available to backorder	Hub Cap	£10.36 £8.63
23	HV574 41 50-04 Available to backorder	Wheel	£22.98 £19.15
26	HV577 38 42-01 Available to backorder	Support	£8.40 £7.00
27	HV504 85 65-01 Available to backorder	Front Axle Assy	£65.48 £54.57
30	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
32	HV581 18 89-10 In stock	Mower Blade	£31.84 £26.53
33	HV525 42 31-01 Available to backorder	Washer	£3.48 £2.90
34	HV581 84 30-01 Available to backorder	Blade Support	£20.09 £16.74
35	HV505 29 09-01 Available to backorder	Key	£2.89 £2.41
36	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
37	HV544 46 22-02 In stock	Belt Guard	£26.00 £21.67
41	HV544 34 32-03 Available to backorder	Gearbox	£113.86 £94.88
42	HV510 03 75-01 Available to backorder	Screw	£1.56 £1.30
43	HV544 93 44-01 Available to backorder	Belt Guide	£9.72 £8.10
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.40 £7.00
45	HV544 93 47-01 Available to backorder	Spring	£4.54 £3.78
46	HV544 44 44-01 Available to backorder	Pulley	£20.16 £16.80
48	HV504 03 48-01 Available to backorder	Belt	£22.42 £18.68
51	HV574 86 94-01 Available to backorder	Frame	£16.82 £14.02
52	HV574 86 96-02 Available to backorder	Grassbag	£61.46 £51.22
53	HV574 61 03-01 Available to backorder	Grassbag	£41.40 £34.50
58	HV574 61 02-01 Available to backorder	Hatch	£37.54 £31.28
60	HV531 20 66-77 Available to backorder	Screw	£1.82 £1.52
61	HV525 43 31-01 Available to backorder	Screw	£1.16 £0.97
64	HV532 15 04-06 Available to backorder	Screw	£5.06 £4.22
65	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
67	HV531 21 14-41 Available to backorder	Tie Rod	£8.40 £7.00
68	HV531 21 18-40 Available to backorder	Spring	£4.26 £3.55
71	HV580 96 33-01 Available to backorder	Rod	£14.22 £11.85
76	HV580 44 56-01 Available to backorder	Shroud	£27.18 £22.65
77	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
80	HV580 42 43-01 Available to backorder	Knob	£11.64 £9.70
81	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
84	HV531 21 14-73 In stock	Segment	£15.54 £12.95
85	HV531 21 15-81 In stock	Plate	£4.92 £4.10
86	HV581 25 95-01 In stock	Screw Rsqm	£1.42 £1.18
88	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
89	HV514 02 66-00 Available to backorder	Washer	£2.28 £1.90
90	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
92	HV580 65 43-01 Available to backorder	Bail	£23.94 £19.95
94	HV587 68 93-03 Available to backorder	Bail	£13.58 £11.32
98	HV531 20 55-81 Available to backorder	Clip	£0.66 £0.55
102	HV582 19 21-01 Available to backorder	Cable	£26.20 £21.83
103	HV531 20 80-43 In stock	Bracket	£1.26 £1.05
151	HV575 56 21-04 Available to backorder	Front Cover Assy	£38.18 £31.82
152	HV574 37 52-01 Available to backorder	Cover	£6.46 £5.38
153	HV574 72 17-01 Available to backorder	Attachment Plate	£3.02 £2.52
154	HV575 95 57-01 Available to backorder	Screw Itxpant	£1.56 £1.30
242	HV576 13 60-06 Available to backorder	Screw	£1.56 £1.30
243	HV579 30 09-01 Available to backorder	Seal	£20.33 £16.94
261	HV532 43 00-34 Available to backorder	Bracket	£6.13 £5.11
