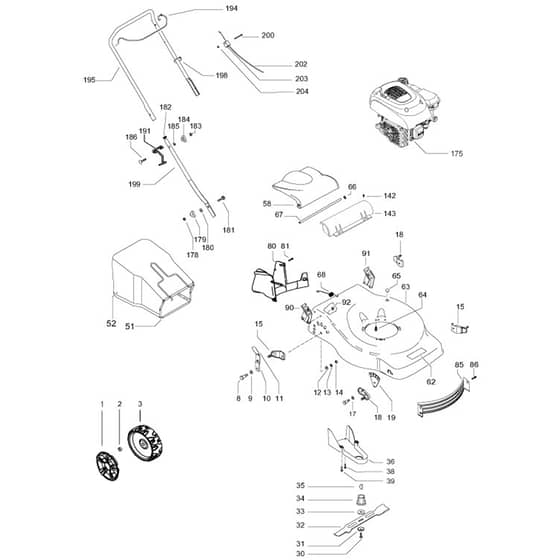

McCulloch M46-120 Classic - 96779580101 - 2019-02 - Product Complete Parts Diagram

Description

McCulloch M46-120 Classic - 96779580101 - 2019-02 - Product Complete Parts Diagram

	Part No.	Details
2	HV504 85 78-01 Available to backorder	Nut	£3.37 £2.81
3	HV574 41 49-04 Available to backorder	Wheel D.170	£22.46 £18.72
8	HV531 20 49-12 Available to backorder	Screw M10x26.4	£7.06 £5.88
11	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
12	HV531 20 79-89 Available to backorder	Washer	£4.26 £3.55
13	HV531 20 89-74 Available to backorder	Washer	£2.30 £1.92
14	HV531 20 79-78 Available to backorder	Nut M10x26.4	£3.59 £2.99
15	HV504 85 16-01 Available to backorder	Support Wheel	£14.27 £11.89
17	HV588 23 42-01 Available to backorder	Washer	£2.56 £2.13
18	HV504 85 15-01 Available to backorder	Support Wheel	£14.93 £12.44
19	HV531 21 29-87 Available to backorder	Tool	£5.18 £4.32
30	HV531 20 80-08 Available to backorder	Screw 3/8"	£7.06 £5.88
32	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV531 20 72-42 Available to backorder	Adapter	£17.96 £14.97
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
36	HV589 02 31-01 Available to backorder	Guard	£22.88 £19.07
38	HV817 41 13-12 Available to backorder	Screw	£5.74 £4.78
39	HV531 20 78-56 Available to backorder	Screw 5x10	£1.56 £1.30
58	HV574 61 02-01 Available to backorder	Hatch	£38.83 £32.36
62	HV581 02 17-01 Available to backorder	Decal Mcculloch	£3.59 £2.99
63	HV582 89 05-02 Available to backorder	Chassis	£171.00 £142.50
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
67	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
80	HV597 00 09-01 Available to backorder	Baffle	£23.63 £19.69
85	HV589 00 87-01 Available to backorder	Baffle	£25.64 £21.37
86	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
90	HV582 74 98-02 Available to backorder	Handle Bracket Right	£28.20 £23.50
91	HV582 74 67-02 Available to backorder	Handle Bracket Left	£28.20 £23.50
142	HV576 13 60-06 Available to backorder	Screw M5x8	£1.56 £1.30
143	HV579 30 09-01 Available to backorder	Seal	£25.84 £21.53
178	HV531 20 79-82 Available to backorder	Nut M8	£2.28 £1.90
179	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
180	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
181	HV531 20 49-21 Available to backorder	Screw M8x25	£5.02 £4.18
182	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
186	HV531 20 70-89 Available to backorder	Screw M8x50	£7.06 £5.88
191	HV504 70 86-01 Available to backorder	Hook	£14.74 £12.28
194	HV504 70 83-04 Available to backorder	Handle	£30.76 £25.63
195	HV504 70 80-01 Available to backorder	Handle Upper Half	£44.22 £36.85
198	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
199	HV531 20 60-71 Available to backorder	Handle Lower Half	£30.14 £25.12
202	HV582 19 21-02 Available to backorder	Cable Assy	£26.51 £22.09
203	HV531 20 80-43 In stock	Bracket	£1.09 £0.91
