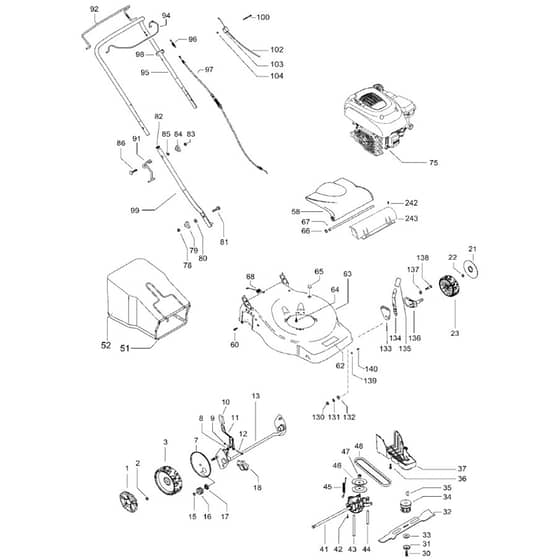

McCulloch M46-110 R CLASSIC - 2016-03 - Product Complete Parts Diagram

Name: McCulloch M46-110 R CLASSIC - 2016-03 - Product Complete Parts Diagram
SKU: m46_110_r_classic_2016_03_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M46-110 R CLASSIC - 2016-03 - Product Complete Parts Diagram

Description

McCulloch M46-110 R CLASSIC - 2016-03 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 39 65-01 Available to backorder	Hub Cap Diam. 210	£12.28 £10.23
2	HV504 85 78-01 Available to backorder	Nut M8+ Selflocking+ Flanged	£3.62 £3.02
3	HV574 41 52-04 Available to backorder	Wheel Diam. 210	£26.44 £22.03
7	HV504 82 73-01 Available to backorder	Dust Cover	£8.40 £7.00
8	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
9	HV531 20 84-92 Available to backorder	Nut M5	£1.56 £1.30
10	HV574 61 05-01 Available to backorder	Knob Wheel Regulator	£7.12 £5.93
11	HV581 17 86-01 Available to backorder	Lever Assy Wheel Regulator	£12.04 £10.03
12	HV538 23 58-07 Available to backorder	Screw M5x45+ Self Threading	£2.84 £2.37
13	HV504 80 01-01 Available to backorder	Rear Axle Rear	£104.36 £86.97
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
17	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
18	HV531 20 59-44 Available to backorder	Support Rear Axle	£8.40 £7.00
21	HV574 39 64-01 Available to backorder	Hub Cap Diam. 190	£10.36 £8.63
23	HV574 41 50-04 Available to backorder	Wheel Diam. 190	£22.98 £19.15
30	HV531 20 80-08 Available to backorder	Screw 3/8"	£6.97 £5.81
32	HV581 18 89-10 In stock	Mower Blade	£31.84 £26.53
33	HV525 42 31-01 Available to backorder	Washer	£3.48 £2.90
34	HV581 84 30-01 In stock	Blade Support	£20.09 £16.74
35	HV505 29 09-01 Available to backorder	Key	£2.56 £2.13
36	HV531 20 78-56 Available to backorder	Screw 5x10	£1.56 £1.30
37	HV544 46 22-02 In stock	Belt Guard	£26.00 £21.67
41	HV544 34 32-03 Available to backorder	Gearbox	£113.86 £94.88
42	HV510 03 75-01 Available to backorder	Screw 4x16+ Self Threading	£1.56 £1.30
43	HV544 93 44-01 Available to backorder	Belt Guide	£9.72 £8.10
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.40 £7.00
45	HV544 93 47-01 Available to backorder	Spring Gear Box	£4.54 £3.78
46	HV544 44 44-01 Available to backorder	Pulley	£20.16 £16.80
48	HV504 03 48-01 Available to backorder	Belt Z28 10x710	£22.42 £18.68
51	HV531 21 34-67 Available to backorder	Frame	£53.68 £44.73
52	HV579 81 63-01 Available to backorder	Collector	£67.94 £56.62
58	HV574 61 02-01 Available to backorder	Hatch	£37.54 £31.28
60	HV531 20 66-77 Available to backorder	Screw	£1.82 £1.52
62	HV581 02 17-01 Available to backorder	Decal	£3.56 £2.97
63	HV531 21 39-11 Available to backorder	Deck	£156.28 £130.23
64	HV532 15 04-06 Available to backorder	Screw 3/8" + Splitwasher	£5.06 £4.22
66	HV584 81 69-03 Available to backorder	Lockwasher Star Lock	£0.77 £0.64
67	HV531 20 50-60 Available to backorder	Shaft Safety Flap	£19.42 £16.18
68	HV531 20 59-99 Available to backorder	Spring	£4.26 £3.55
78	HV531 20 79-82 Available to backorder	Nut M8	£2.72 £2.27
79	HV531 20 49-23 Available to backorder	Wing Nut	£4.14 £3.45
80	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
81	HV531 20 49-21 Available to backorder	Screw M8x25	£5.04 £4.20
82	HV531 20 89-50 Available to backorder	Plug	£1.04 £0.87
86	HV531 20 70-89 Available to backorder	Screw M8x50	£7.12 £5.93
91	HV504 70 86-01 Available to backorder	Hook Starter Cable Guide	£14.88 £12.40
92	HV504 70 84-01 Available to backorder	Handle Clutch	£31.04 £25.87
94	HV504 70 83-04 Available to backorder	Handle Brake	£31.04 £25.87
95	HV504 70 80-01 Available to backorder	Handle Upper Half	£44.64 £37.20
98	HV531 20 55-81 Available to backorder	Clip	£0.66 £0.55
99	HV531 20 60-71 Available to backorder	Handle Lower Half	£30.40 £25.33
102	HV582 19 21-02 Available to backorder	Brake Wire	£25.68 £21.40
103	HV531 21 26-89 Available to backorder	Casing	£1.28 £1.07
130	HV531 20 79-78 Available to backorder	Nut M10	£3.62 £3.02
131	HV531 20 89-74 Available to backorder	Washer	£2.34 £1.95
132	HV531 20 79-89 Available to backorder	Washer	£5.06 £4.22
137	HV588 23 42-01 Available to backorder	Washer	£2.58 £2.15
138	HV531 20 49-12 Available to backorder	Screw M10	£7.12 £5.93
139	HV531 20 52-13 Available to backorder	Nut M5	£1.82 £1.52
242	HV576 13 60-06 Available to backorder	Screw	£1.56 £1.30
243	HV579 30 09-01 Available to backorder	Seal	£20.33 £16.94
