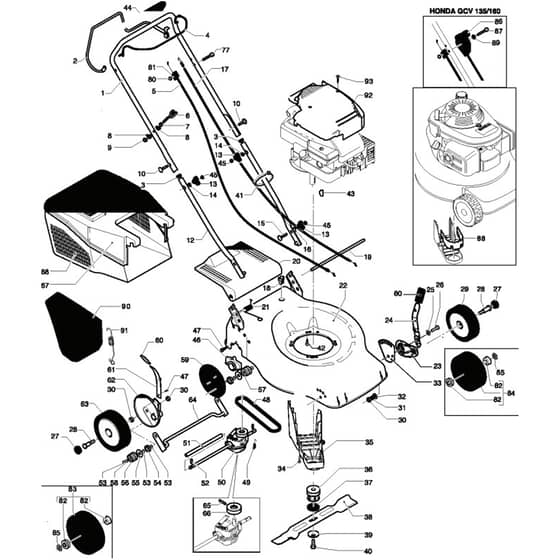

McCulloch M4546 SD - 2007-06 - Product Complete Parts Diagram

Name: McCulloch M4546 SD - 2007-06 - Product Complete Parts Diagram
SKU: m4546_sd_2007_06_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m4546_sd_2007_06_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M4546 SD - 2007-06 - Product Complete Parts Diagram

Description

McCulloch M4546 SD - 2007-06 - Product Complete Parts Diagram

	Part No.	Details
1	HV531 20 52-04 Available to backorder	Handle	£46.14 £38.45
2	HV531 20 52-08 Available to backorder	Loop	£24.36 £20.30
3	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
4	HV531 21 26-68 Available to backorder	Maniglia Freno 546-646-E460	£10.50 £8.75
4	HV531 21 14-29 Available to backorder	Brake Handle	£28.84 £24.03
6	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.69 £2.24
7	HV531 20 71-65 Available to backorder	Nut	£2.05 £1.71
8	HV514 02 66-00 In stock	Washer	£2.50 £2.08
9	HV531 20 84-91 Available to backorder	Nut	£2.05 £1.71
10	HV531 20 70-89 Available to backorder	Screw	£7.06 £5.88
12	HV531 20 60-71 Available to backorder	Handle	£30.14 £25.12
13	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
15	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
16	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
17	HV531 20 61-91 Available to backorder	Wire	£30.12 £25.10
18	HV531 20 55-57 Available to backorder	Grommet	£3.84 £3.20
19	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
20	HV531 21 25-41 Available to backorder	Deflector	£45.52 £37.93
21	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
23	HV544 45 23-01 Available to backorder	Bracket	£9.08 £7.57
25	HV531 20 60-20 Available to backorder	Washer	£2.11 £1.76
26	HV531 20 49-12 Available to backorder	Screw	£7.06 £5.88
28	HV531 20 50-42 Available to backorder	Screw	£8.98 £7.48
29	HV531 20 50-29 Available to backorder	Wheel	£23.21 £19.34
30	HV531 20 79-78 Available to backorder	Nut	£3.59 £2.99
31	HV531 20 89-74 Available to backorder	Washer	£2.30 £1.92
32	HV531 20 79-89 Available to backorder	Washer	£4.26 £3.55
33	HV574 41 32-09 Available to backorder	Bracket	£4.94 £4.12
34	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
35	HV544 46 22-02 In stock	Belt Guard	£27.71 £23.09
36	HV581 84 30-01 In stock	Adapter	£17.14 £14.28
37	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
38	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
40	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
41	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
43	HV531 20 49-07 In stock	Key	£1.55 £1.29
44	HV531 20 59-89 Available to backorder	Sheating	£7.79 £6.49
45	HV531 20 79-82 Available to backorder	Nut	£2.28 £1.90
46	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
47	HV531 20 82-16 Available to backorder	Screw	£1.56 £1.30
48	HV501 38 19-01 Available to backorder	Belt	£24.12 £20.10
49	HV531 20 52-16 Available to backorder	Spring	£5.12 £4.27
50	HV531 21 30-47 Available to backorder	Gearbox	£136.32 £113.60
54	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
55	HV525 42 29-01 Available to backorder	Washer	£2.40 £2.00
56	HV531 20 50-45 Available to backorder	Pinion	£7.60 £6.33
57	HV531 20 50-46 Available to backorder	Pinion	£7.60 £6.33
58	HV531 20 88-59 Available to backorder	Washer	£2.14 £1.78
59	HV531 20 51-95 Available to backorder	Cover	£15.38 £12.82
60	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
62	HV531 20 51-94 Available to backorder	Cover	£16.04 £13.37
64	HV540 06 86-01 Available to backorder	Rear Axle Assy	£58.46 £48.72
65	HV531 20 67-72 Available to backorder	Pin Retaining Screw	£4.50 £3.75
67	HV531 20 82-96 Available to backorder	Cover	£55.54 £46.28
68	HV531 20 83-13 Available to backorder	Bag	£37.46 £31.22
77	HV531 20 63-46 Available to backorder	Screw	£2.56 £2.13
80	HV531 20 52-13 Available to backorder	Nut	£1.79 £1.49
82	HV531 21 38-28 Available to backorder	Ball Bearing	£7.24 £6.03
84	HV531 21 26-35 Available to backorder	Wheel	£23.21 £19.34
85	HV531 20 66-44 Available to backorder	Washer	£2.30 £1.92
86	HV531 20 60-30 Available to backorder	Throttle Trigger	£13.46 £11.22
88	HV504 05 66-01 Available to backorder	Protection	£7.79 £6.49
89	HV531 20 66-66 Available to backorder	Washer	£2.03 £1.69
90	HV531 21 06-17 Available to backorder	Mulch Plug	£51.25 £42.71
91	HV522 85 77-01 Available to backorder	Mulch Plug	£5.24 £4.37
92	HV531 21 24-31 Available to backorder	Capottina x Motore Q40 B&S	£11.28 £9.40
93	HV531 21 27-10 Available to backorder	Screw	£2.56 £2.13
