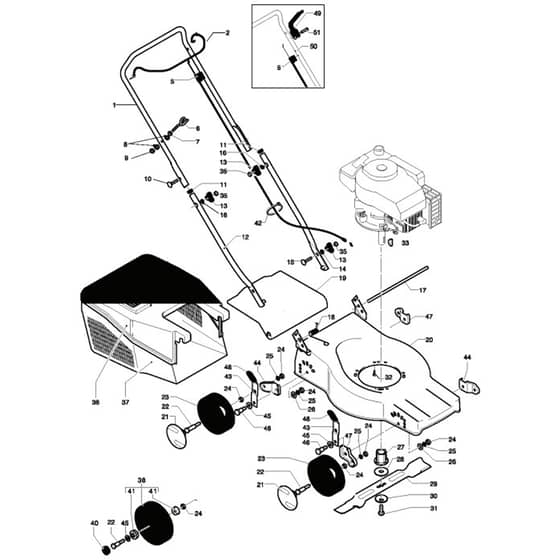

McCulloch M40 S - 962000087 - 2007-05 - Product Complete Parts Diagram

Name: McCulloch M40 S - 962000087 - 2007-05 - Product Complete Parts Diagram
SKU: m40_s_962000087_2007_05_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m40_s_962000087_2007_05_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M40 S - 962000087 - 2007-05 - Product Complete Parts Diagram

Description

McCulloch M40 S - 962000087 - 2007-05 - Product Complete Parts Diagram

	Part No.	Details
1	HV531 20 52-04 Available to backorder	Handle	£46.14 £38.45
2	HV531 21 26-68 Available to backorder	Maniglia Freno 546-646-E460	£10.50 £8.75
2	HV531 21 14-29 Available to backorder	Brake Handle	£28.84 £24.03
5	HV531 20 60-26 Available to backorder	Wire	£26.51 £22.09
6	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.69 £2.24
7	HV531 20 71-65 Available to backorder	Nut	£2.05 £1.71
8	HV514 02 66-00 In stock	Washer	£2.50 £2.08
9	HV531 20 84-91 Available to backorder	Nut	£2.05 £1.71
10	HV531 20 70-89 Available to backorder	Screw	£7.06 £5.88
11	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
12	HV531 20 60-71 Available to backorder	Handle	£30.14 £25.12
13	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
14	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
15	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
17	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
18	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
19	HV531 21 25-41 Available to backorder	Deflector	£45.52 £37.93
19	HV531 21 26-46 Available to backorder	Paratoia Mp400/Mp546 Flymo 04	£48.07 £40.06
20	HV531 21 24-03 Available to backorder	Deck	£148.68 £123.90
20	HV531 21 39-80 Available to backorder	Chassis	£219.72 £183.10
21	HV531 20 60-10 Available to backorder	Hub Cap	£5.51 £4.59
22	HV531 20 50-42 Available to backorder	Screw	£8.98 £7.48
24	HV531 20 79-78 Available to backorder	Nut	£3.59 £2.99
25	HV531 20 89-74 Available to backorder	Washer	£2.30 £1.92
26	HV531 20 79-89 Available to backorder	Washer	£4.26 £3.55
27	HV531 20 72-42 Available to backorder	Adapter	£17.96 £14.97
28	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
29	HV587 15 90-10 Available to backorder	Mower Blade	£27.02 £22.52
31	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
32	HV532 15 04-06 Available to backorder	Screw	£4.97 £4.14
33	HV531 20 49-07 In stock	Key	£1.55 £1.29
34	HV531 20 79-81 Available to backorder	Washer	£2.30 £1.92
35	HV531 20 79-82 Available to backorder	Nut	£2.28 £1.90
36	HV531 20 82-96 Available to backorder	Cover	£55.54 £46.28
37	HV531 20 83-13 Available to backorder	Bag	£37.46 £31.22
38	HV531 21 26-35 Available to backorder	Wheel	£23.21 £19.34
41	HV531 21 38-28 Available to backorder	Ball Bearing	£7.24 £6.03
42	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
44	HV504 85 16-01 Available to backorder	Bracket	£14.27 £11.89
45	HV531 20 66-43 Available to backorder	Washer	£2.56 £2.13
46	HV531 20 49-12 Available to backorder	Screw	£7.06 £5.88
47	HV504 85 15-01 Available to backorder	Bracket	£14.93 £12.44
48	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
49	HV531 20 60-27 Available to backorder	Handle	£2.17 £1.81
