McCulloch M24-54T - 290840 - 2013-02 - Mower Deck - Cutting Deck Parts Diagram

Description

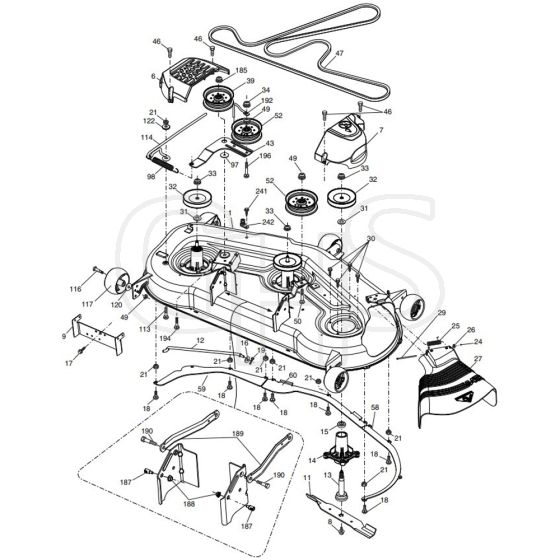

McCulloch M24-54T - 290840 - 2013-02 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
0	HV587 82 03-01 Available to backorder	Mandrel	£144.12 £120.10
6	HV532 19 60-66 Available to backorder	Cover	£36.54 £30.45
7	HV532 19 71-81 Available to backorder	Cover	£33.31 £27.76
8	HV532 19 30-03 Available to backorder	Screw	£13.87 £11.56
11	HV532 18 72-56 Available to backorder	Ride On Blade	£30.77 £25.64
12	HV532 40 48-51 Available to backorder	Rod	£21.16 £17.63
13	HV532 18 72-91 Available to backorder	Shaft	£62.16 £51.80
14	HV587 81 97-01 Available to backorder	Bearing Housing	£158.64 £132.20
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
17	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
19	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV539 10 76-09 Available to backorder	Spring	£12.17 £10.14
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 18 72-57 Available to backorder	Deflector	£60.24 £50.20
29	HV595 29 70-01 In stock	Shaft	£10.15 £8.46
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 17 34-36 Available to backorder	Pulley	£41.35 £34.46
33	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
34	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
39	HV532 19 61-04 Available to backorder	Pulley	£112.08 £93.40
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
47	HV587 68 67-10 Available to backorder	Belt	£102.84 £85.70
49	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
50	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
52	HV532 19 61-06 Available to backorder	Pulley	£97.56 £81.30
58	HV532 18 73-42 Available to backorder	Baffle	£21.78 £18.15
59	HV532 18 73-44 Available to backorder	Baffle	£30.76 £25.63
60	HV532 18 76-07 Available to backorder	Baffle	£32.04 £26.70
97	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
98	HV532 19 61-05 Available to backorder	Spring	£19.66 £16.38
113	HV872 11 05-08 Available to backorder	Bolt	£3.59 £2.99
117	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
185	HV873 90 07-00 In stock	Nut	Was £4.92 £4.10 Special Price £3.54 £2.95
187	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
188	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
189	HV532 19 51-85 Available to backorder	Arm	£33.31 £27.76
190	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
192	HV532 19 84-68 Available to backorder	Belt Guide	£10.90 £9.08
194	HV874 49 07-36 Available to backorder	Bolt	£8.98 £7.48
196	HV872 14 06-20 Available to backorder	Bolt	£7.70 £6.42
241	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
242	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
