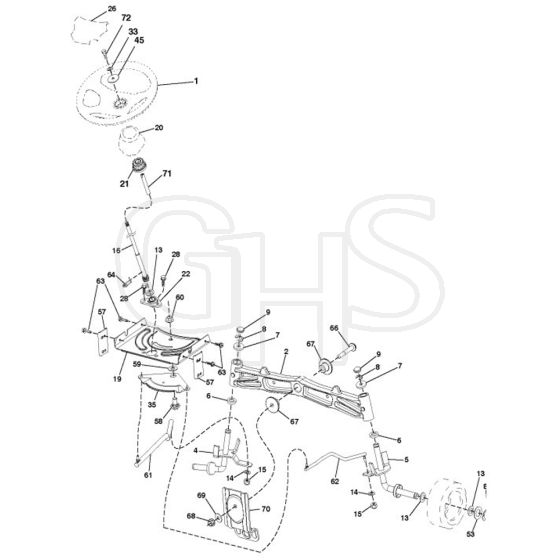

McCulloch M22042H - 96041018000 - 2010-01 - Steering Parts Diagram

Name: McCulloch M22042H - 96041018000 - 2010-01 - Steering Parts Diagram
SKU: m22042h_96041018000_2010_01_steering-group
Price: 0.64 GBP
Availability: InStock

Part No. m22042h_96041018000_2010_01_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M22042H - 96041018000 - 2010-01 - Steering Parts Diagram

Description

McCulloch M22042H - 96041018000 - 2010-01 - Steering Parts Diagram

	Part No.	Details
1	HV532 42 41-46 Available to backorder	Steering Wheel	£78.48 £65.40
4	HV596 87 36-01 Available to backorder	Spindle	£67.32 £56.10
6	HV532 00 62-66 Available to backorder	Washer	£2.83 £2.36
7	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
8	HV812 00 00-29 In stock	Retainer Ring	£0.77 £0.64
9	HV532 12 12-32 Available to backorder	Hub Cap	£5.60 £4.67
13	HV532 12 17-49 In stock	Washer	£2.82 £2.35
19	HV532 19 47-29 Available to backorder	Plate	£76.80 £64.00
21	HV587 73 89-05 Available to backorder	Adapter	£19.86 £16.55
22	HV587 73 89-01 Available to backorder	Support	£12.48 £10.40
28	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
33	HV810 04 05-00 Available to backorder	Washer	£1.78 £1.48
35	HV532 19 47-32 Available to backorder	Plate	£78.24 £65.20
45	HV819 11 38-12 Available to backorder	Washer	£17.32 £14.43
53	HV532 18 89-67 In stock	Washer	£4.33 £3.61
58	HV532 19 47-47 Available to backorder	Bolt	£13.46 £11.22
59	HV532 19 47-48 Available to backorder	Washer	£4.86 £4.05
61	HV597 04 78-02 Available to backorder	Link	£66.48 £55.40
62	HV597 04 79-02 In stock	Link	£66.48 £55.40
63	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
64	HV532 19 98-49 Available to backorder	Spring Retainer	£3.46 £2.88
66	HV871 02 07-48 Available to backorder	Bolt	£9.62 £8.02
67	HV532 19 47-37 Available to backorder	Bushing	£21.16 £17.63
68	HV873 90 07-00 In stock	Nut	Was £4.92 £4.10 Special Price £3.54 £2.95
69	HV532 19 91-62 Available to backorder	Washer	£9.62 £8.02
71	HV532 19 07-52 Available to backorder	Shaft	£22.80 £19.00
72	HV532 42 89-82 Available to backorder	Bolt	£7.46 £6.22
