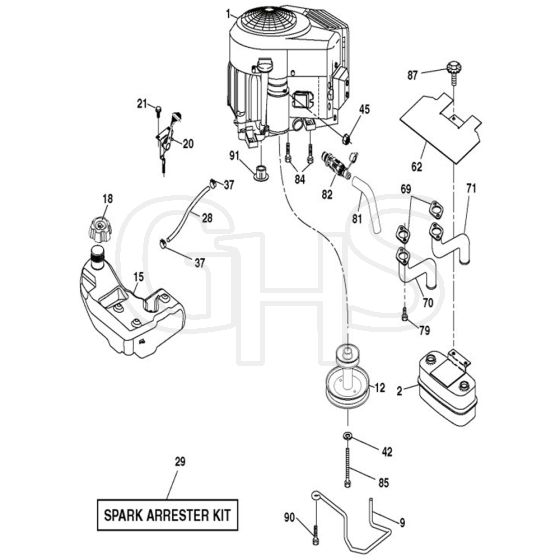

McCulloch M22-46T - 96042014600 - 2012-12 - Engine Parts Diagram

Name: McCulloch M22-46T - 96042014600 - 2012-12 - Engine Parts Diagram
SKU: m22_46t_96042014600_2012_12_engine-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M22-46T - 96042014600 - 2012-12 - Engine Parts Diagram

Description

McCulloch M22-46T - 96042014600 - 2012-12 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 14 97-23 Available to backorder	Muffler	£158.80 £132.33
9	HV584 91 16-01 Available to backorder	Keeper	£20.06 £16.72
20	HV532 42 35-02 Available to backorder	Control	£17.46 £14.55
21	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
28	HV532 13 70-40 Available to backorder	Hose	£15.08 £12.57
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£47.16 £39.30
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
42	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
62	HV532 43 40-17 Available to backorder	Shield	£22.64 £18.87
69	HV532 16 53-91 Available to backorder	Gasket	£6.04 £5.03
70	HV581 88 11-01 Available to backorder	Tube	£38.00 £31.67
79	HV532 18 39-06 Available to backorder	Screw	£4.54 £3.78
82	HV532 42 82-87 Available to backorder	Plug	£14.59 £12.16
84	HV817 06 06-20 Available to backorder	Screw	£7.12 £5.93
85	HV532 17 39-37 Available to backorder	Bolt	£9.76 £8.13
87	HV532 17 18-77 Available to backorder	Bolt	£5.04 £4.20
90	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
91	HV532 18 74-95 Available to backorder	Bushing	£9.06 £7.55
