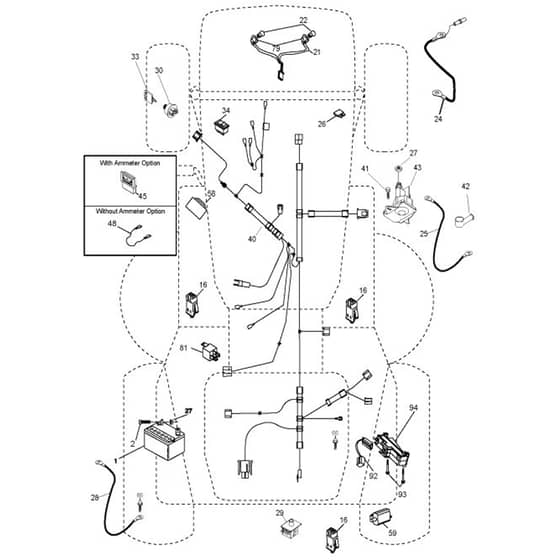

McCulloch M200107HRB - 96061022802 - 2010-07 - Electrical Parts Diagram

Description

McCulloch M200107HRB - 96061022802 - 2010-07 - Electrical Parts Diagram

	Part No.	Details
1	HV547 85 37-01 Available to backorder	Battery	£115.92 £96.60
2	HV874 76 04-12 Available to backorder	Bolt	£2.00 £1.67
16	HV532 17 61-38 Available to backorder	Micro Switch	£15.28 £12.73
21	HV532 17 56-88 Available to backorder	Harness	£46.73 £38.94
22	HV532 00 41-52 Available to backorder	Bulb	£4.28 £3.57
24	HV532 16 59-87 Available to backorder	Cable	£37.62 £31.35
25	HV532 42 12-99 Available to backorder	Cable	£23.35 £19.46
26	HV532 17 51-58 Available to backorder	Fuse	£5.63 £4.69
29	HV532 19 27-49 Available to backorder	Switch.Seat.Dp W/Ramps	£19.20 £16.00
30	HV532 19 33-50 Available to backorder	Ignition Module	£25.09 £20.91
33	HV532 41 19-35 Available to backorder	Key	£10.37 £8.64
34	HV532 11 07-12 Available to backorder	Switch	£16.98 £14.15
40	HV532 19 74-36 Available to backorder	Cable Assy	£110.52 £92.10
43	HV582 04 28-02 In stock	Solenoid	£18.58 £15.48
59	HV583 10 07-01 Available to backorder	Switch Fbi	£18.56 £15.47
66	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
81	HV532 10 97-48 Available to backorder	Relay	£15.38 £12.82
94	HV532 19 18-34 Available to backorder	Module.Reverse.Ros	£22.63 £18.86
