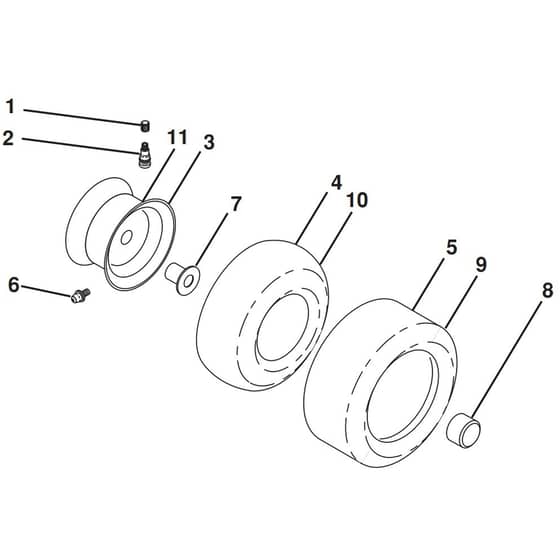

McCulloch M200-117T - 96041039200 - 2016-03 - Wheels and Tyres Parts Diagram

Name: McCulloch M200-117T - 96041039200 - 2016-03 - Wheels and Tyres Parts Diagram
SKU: m200_117t_96041039200_2016_03_wheels_and_tyres-group
Price: 4.36 GBP
Availability: InStock

Part No. m200_117t_96041039200_2016_03_wheels_and_tyres-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-117T - 96041039200 - 2016-03 - Wheels and Tyres Parts Diagram

Description

McCulloch M200-117T - 96041039200 - 2016-03 - Wheels and Tyres Parts Diagram

	Part No.	Details
1	HV532 05 91-92 Available to backorder	Cap Valve	£6.29 £5.24
2	HV532 06 51-39 Available to backorder	Nipple	£5.23 £4.36
4	HV532 05 99-04 Available to backorder	Hose (Service Item Only)	£26.74 £22.28
5	HV532 12 20-73 Available to backorder	Tyre Front (15 x 6-6)	£62.04 £51.70
6	HV532 00 02-78 Available to backorder	Nipple (Front Wheel Only)	£7.70 £6.42
7	HV532 00 90-40 In stock	Bearing (Front Wheel Only)	£18.38 £15.32
8	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
9	HV532 13 84-68 Available to backorder	Tyre Rear (20 x 8-8)	£81.72 £68.10
10	HV532 00 71-52 Available to backorder	Tube (Service Item Only)	£26.26 £21.88
11	HV532 10 61-08 Available to backorder	Rim Rear	£140.16 £116.80
