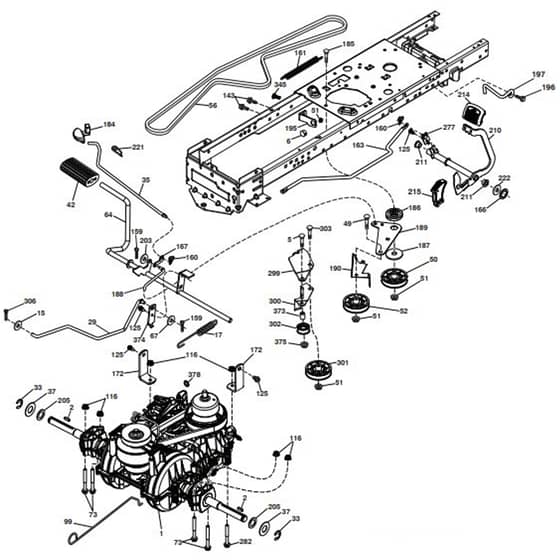

McCulloch M200-117T - 96041039200 - 2016-03 - Drive Parts Diagram

Description

McCulloch M200-117T - 96041039200 - 2016-03 - Drive Parts Diagram

	Part No.	Details
2	HV532 12 35-83 In stock	Key	£7.18 £5.98
17	HV501 48 71-01 Available to backorder	Spring	£7.70 £6.42
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV583 86 45-01 Available to backorder	Rod	£20.50 £17.08
37	HV532 18 89-67 In stock	Washer	£4.33 £3.61
42	HV532 00 88-83 Available to backorder	Pedal Rubber	£10.90 £9.08
49	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
51	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV581 60 38-01 In stock	Belt	£64.93 £54.11
64	HV589 67 14-01 Available to backorder	Shaft	£49.19 £40.99
67	HV582 58 01-01 Available to backorder	Washer	£2.17 £1.81
73	HV874 49 05-44 Available to backorder	Screw	£7.06 £5.88
99	HV532 43 59-35 Available to backorder	Rod	£8.98 £7.48
116	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
125	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
160	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
163	HV587 84 79-02 Available to backorder	Rod	£12.50 £10.42
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
172	HV583 97 42-02 Available to backorder	Strap	£5.63 £4.69
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV582 21 70-01 Available to backorder	Link	£10.72 £8.93
189	HV532 19 43-17 Available to backorder	Plate	£14.74 £12.28
195	HV581 50 46-01 Available to backorder	Bracket	£6.14 £5.12
196	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
197	HV585 65 86-01 Available to backorder	Clutch	£12.18 £10.15
203	HV734 11 63-01 In stock	Washer	£2.63 £2.19
205	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
211	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
215	HV591 10 01-01 Available to backorder	Pedal	£12.82 £10.68
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
222	HV879 21 20-10 Available to backorder	Washer	£5.63 £4.69
277	HV532 44 85-00 Available to backorder	Link	£8.86 £7.38
299	HV532 41 56-83 Available to backorder	Bracket	£14.10 £11.75
300	HV532 41 56-81 Available to backorder	Idler	£8.98 £7.48
301	HV532 41 56-80 Available to backorder	Idler	£41.35 £34.46
302	HV581 42 05-01 Available to backorder	Pulley	£27.79 £23.16
303	HV872 11 06-18 Available to backorder	Bolt	£6.48 £5.40
306	HV876 02 04-16 Available to backorder	Split Pin	£1.87 £1.56
373	HV581 46 18-01 Available to backorder	Spacer	£4.50 £3.75
374	HV581 47 52-01 Available to backorder	Arm	£7.70 £6.42
375	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
