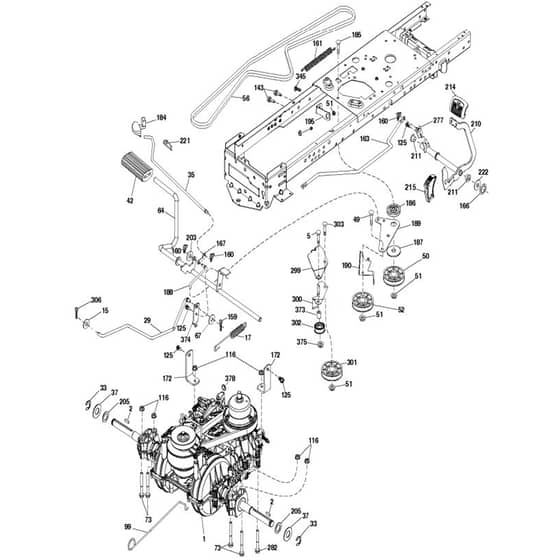

McCulloch M200-117T - 96041035700 - 2013-06 - Drive Parts Diagram

Name: McCulloch M200-117T - 96041035700 - 2013-06 - Drive Parts Diagram
SKU: m200_117t_96041035700_2013_06_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-117T - 96041035700 - 2013-06 - Drive Parts Diagram

Description

McCulloch M200-117T - 96041035700 - 2013-06 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
29	HV584 82 31-01 Available to backorder	Rod	£12.28 £10.23
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
37	HV532 18 89-67 In stock	Washer	£5.04 £4.20
49	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
50	HV532 19 43-27 Available to backorder	Pulley	£43.18 £35.98
51	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
56	HV581 60 38-01 In stock	Belt	£62.74 £52.28
64	HV532 44 83-53 Available to backorder	Shaft	£75.04 £62.53
67	HV734 11 72-01 Available to backorder	Washer	£2.02 £1.68
73	HV874 49 05-44 Available to backorder	Screw	£7.12 £5.93
99	HV532 43 59-35 Available to backorder	Rod	£9.06 £7.55
116	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
125	HV532 42 88-67 Available to backorder	Screw	£4.02 £3.35
143	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
160	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
161	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
163	HV583 97 13-01 Available to backorder	Rod	£18.40 £15.33
166	HV532 42 91-64 Available to backorder	Nut	£1.82 £1.52
167	HV532 40 52-57 Available to backorder	Latch	£5.82 £4.85
172	HV583 97 42-01 Available to backorder	Strap	£8.40 £7.00
185	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV532 19 43-23 Available to backorder	Link	£7.86 £6.55
189	HV532 19 43-17 Available to backorder	Plate	£14.88 £12.40
195	HV581 50 46-01 Available to backorder	Bracket	£6.20 £5.17
203	HV734 11 63-01 In stock	Washer	£2.54 £2.12
205	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
210	HV532 44 82-70 Available to backorder	Pedal	£54.68 £45.57
211	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
215	HV532 44 82-54 Available to backorder	Pad	£12.28 £10.23
221	HV532 40 31-87 Available to backorder	Spring	£3.88 £3.23
222	HV879 21 20-10 Available to backorder	Washer	£5.68 £4.73
277	HV532 44 85-00 Available to backorder	Link	£9.52 £7.93
299	HV532 41 56-83 Available to backorder	Bracket	£13.96 £11.63
300	HV532 41 56-81 Available to backorder	Idler	£9.06 £7.55
301	HV532 41 56-80 Available to backorder	Idler	£41.76 £34.80
302	HV581 42 05-01 Available to backorder	Pulley	£28.06 £23.38
303	HV872 11 06-18 Available to backorder	Bolt	£7.76 £6.47
306	HV876 02 04-16 Available to backorder	Split Pin	£1.86 £1.55
373	HV581 46 18-01 Available to backorder	Spacer	£4.54 £3.78
374	HV581 47 52-01 Available to backorder	Arm	£7.76 £6.47
375	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
378	HV584 28 77-01 Available to backorder	Nut	£1.56 £1.30
