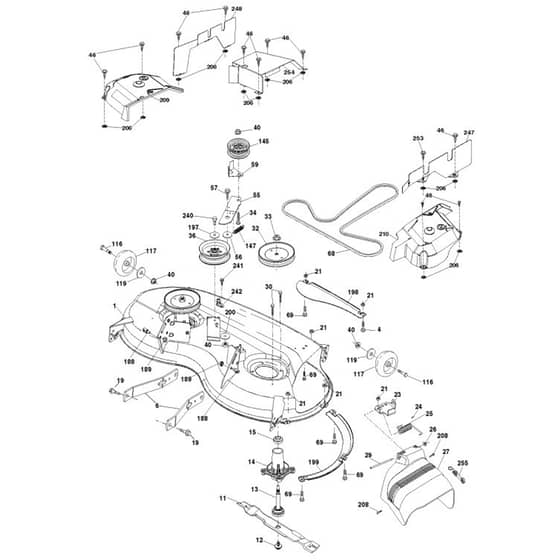

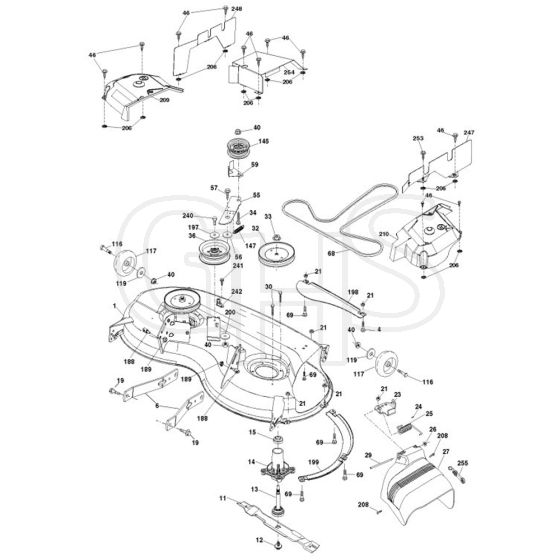

McCulloch M200-117T - 96041033900 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram

Ref. Img. Part No. Details
  14 Mandrel Mandrel Assembly (Includes Housing (Key# 14)+ Shaft Assembly (Key# 13)+ Bearing (Key# 15) Only-Pulley/Washer And Blade Bolt/Washer Not Included.) (--)
Mandrel Mandrel Assembly (Includes Housing (Key# 14)+ Shaft Assembly (Key# 13)+ Bearing (Key# 15) Only-Pulley/Washer And Blade Bolt/Washer Not Included.) (--)
HV587 81 97-01 Out of stock
Mandrel Mandrel Assembly (Includes Housing (Key# 14)+ Shaft Assembly (Key# 13)+ Bearing (Key# 15) Only-Pulley/Washer And Blade Bolt/Washer Not Included.) (--)
£153.76 £128.13

  11 Ride On Blade
Ride On Blade
HV532 40 53-80 Out of stock
Ride On Blade
£29.16 £24.30

  12 Screw
Screw
HV584 30 93-01 Out of stock
Screw
£6.78 £5.65

  15 Bearing
Bearing
HV532 11 04-85 Out of stock
Bearing
£7.69 £6.41

  19 Bolt
Bolt
HV532 19 65-39 Out of stock
Bolt
£5.94 £4.95

  23 Hinge
Hinge
HV532 19 25-57 Out of stock
Hinge
£10.96 £9.13

  24 Hub Cap
Hub Cap
HV532 10 53-04 Out of stock
Hub Cap
£2.87 £2.39

  25 Torsion Spring
Torsion Spring
HV532 19 70-26 Out of stock
Torsion Spring
£10.68 £8.90

  26 Nut
Nut
HV532 11 04-52 Out of stock
Nut
£1.64 £1.37

  29 Shaft
Shaft
HV595 29 70-01 Out of stock
Shaft
£13.98 £11.65

  30 Screw
Screw
HV584 95 39-01 Out of stock
Screw
£4.74 £3.95

  32 Pulley
Pulley
HV532 19 59-45 Out of stock
Pulley
£45.22 £37.68

  33 Nut
Nut
HV596 13 48-01 Out of stock
Nut
£1.19 £0.99

  34 Bolt
Bolt
HV596 13 61-01 Out of stock
Bolt
£6.37 £5.31

  36 Pulley
Pulley
HV532 19 61-06 Out of stock
Pulley
£81.38 £67.82

  40 Nut
Nut
HV532 40 91-49 Out of stock
Nut
£4.51 £3.76

  46 Screw
Screw
HV532 13 77-29 Out of stock
Screw
£2.40 £2.00

  56 Spacer
Spacer
HV532 19 90-92 Out of stock
Spacer
£6.66 £5.55

  57 Screw
Screw
HV817 00 06-16 Out of stock
Screw
£5.18 £4.32

  68 Belt
Belt
HV584 45 31-01 In stock
Belt
£66.19 £55.16

  69 Bolt
Bolt
HV596 13 64-01 Out of stock
Bolt
£3.16 £2.63

  117 Wheel
Wheel
HV532 17 48-73 In stock
Wheel
£16.66 £13.88

  145 Pulley
Pulley
HV532 17 79-68 Out of stock
Pulley
£49.49 £41.24

  147 Spring
Spring
HV532 19 72-51 Out of stock
Spring
£15.26 £12.72

  188 Stud
Stud
HV532 19 51-61 Out of stock
Stud
£2.38 £1.98

  189 Nut
Nut
HV873 90 05-00 Out of stock
Nut
£2.20 £1.83

  197 Washer
Washer
HV734 11 72-01 Out of stock
Washer
£1.87 £1.56

  198 Plate
Plate
HV532 40 31-49 Out of stock
Plate
£25.16 £20.97

  199 Plate
Plate
HV532 40 31-50 Out of stock
Plate
£27.20 £22.67

  200 Washer
Washer
HV532 41 35-24 Out of stock
Washer
£7.02 £5.85

  206 Nut
Nut
HV532 42 30-62 Out of stock
Nut
£1.19 £0.99

  208 Screw
Screw
HV817 67 06-08 Out of stock
Screw
£4.30 £3.58

  241 Screw
Screw
HV532 15 29-27 Out of stock
Screw
£2.08 £1.73

  242 Hose Coupling
Hose Coupling
HV532 41 55-98 Out of stock
Hose Coupling
£5.04 £4.20

  247 Shield
Shield
HV532 43 02-63 Out of stock
Shield
£19.73 £16.44

  248 Shield
Shield
HV532 43 02-62 Out of stock
Shield
£17.18 £14.32

  254 Shield
Shield
HV532 43 02-64 Out of stock
Shield
£68.51 £57.09
