McCulloch M200-107TC - 96051011700 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram

Description

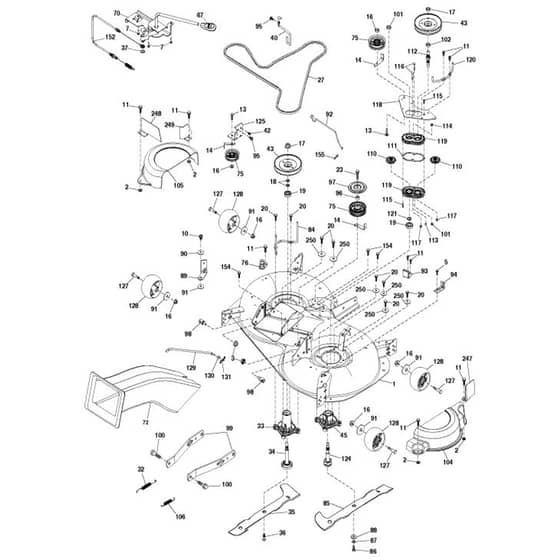

McCulloch M200-107TC - 96051011700 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
33	HV587 12 61-06 Available to backorder	Mandrel Assembly (Includes Assembly (Key# 33)+ Shaft Assembly (Key# 34) And Bearing (Key# 19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included. (--)	£130.20 £108.50
0	HV581 96 49-01 Available to backorder	Deck (--)	£849.92 £708.27
1	HV581 65 05-01 Available to backorder	Mandrel (--)	£88.44 £73.70
2	HV532 42 30-62 Available to backorder	Nut	£1.20 £1.00
3	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
5	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
7	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
10	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
11	HV532 13 77-29 In stock	Screw	£2.22 £1.85
13	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
16	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
17	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
18	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
19	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
20	HV584 95 39-01 Available to backorder	Screw	£5.88 £4.90
23	HV817 49 06-28 Available to backorder	Screw	£8.03 £6.69
27	HV583 58 16-01 In stock	Belt	£57.72 £48.10
32	HV532 40 18-72 Available to backorder	Spring	£7.18 £5.98
35	HV581 51 79-01 Available to backorder	Blade	£38.15 £31.79
36	HV532 19 30-03 Available to backorder	Screw	£13.87 £11.56
40	HV531 16 95-01 Available to backorder	Belt Guide	£19.57 £16.31
42	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
43	HV583 56 82-01 Available to backorder	Pulley	£57.35 £47.79
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
75	HV597 02 50-01 In stock	Pulley	£53.39 £44.49
76	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
85	HV581 51 80-02 Available to backorder	Blade	£38.15 £31.79
86	HV583 11 70-01 Available to backorder	Bolt	£7.18 £5.98
88	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
90	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
94	HV532 19 72-50 Available to backorder	Bracket	£8.98 £7.48
95	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
98	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
100	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
102	HV532 40 25-11 Available to backorder	Spacer	£7.06 £5.88
104	HV581 71 40-01 Available to backorder	Cover	£29.47 £24.56
105	HV532 44 47-55 Available to backorder	Cover	£35.88 £29.90
106	HV532 19 32-16 Available to backorder	Ressort Retour Frein De Lame	£6.79 £5.66
110	HV587 93 48-01 Available to backorder	Gear	£45.29 £37.74
111	HV583 51 40-01 Available to backorder	Gasket	£9.00 £7.50
117	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
119	HV583 52 76-01 Available to backorder	Gearcase	£64.92 £54.10
128	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
130	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
131	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
152	HV583 59 17-01 In stock	Cable	£18.74 £15.62
154	HV532 19 98-55 Available to backorder	Screw	£1.60 £1.33
155	HV532 00 44-97 Available to backorder	Retainer Ring	£1.49 £1.24
247	HV581 26 34-02 Available to backorder	Guard	£16.66 £13.88
249	HV581 26 35-02 Available to backorder	Guard	£16.04 £13.37
