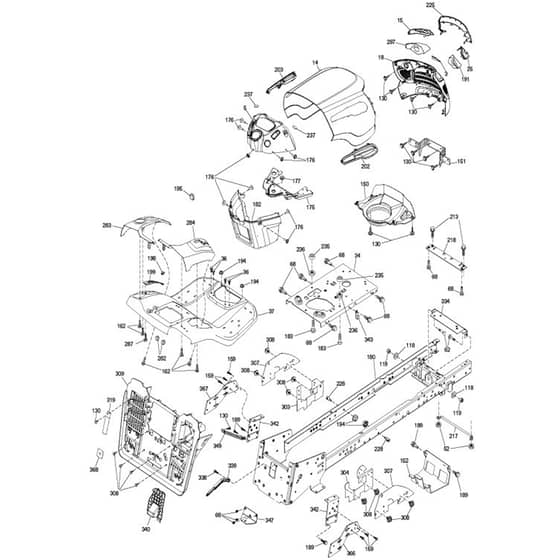

McCulloch M200-107TC - 96051006902 - 2016-01 - Chassis & Enclosures Parts Diagram

Name: McCulloch M200-107TC - 96051006902 - 2016-01 - Chassis & Enclosures Parts Diagram
SKU: m200_107tc_96051006902_2016_01_chassis_enclosures-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-107TC - 96051006902 - 2016-01 - Chassis & Enclosures Parts Diagram

Description

McCulloch M200-107TC - 96051006902 - 2016-01 - Chassis & Enclosures Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 44 11-26 Available to backorder	Plug (--)	£8.24 £6.87
3	HV578 89 71-01 Available to backorder	Decal	£7.76 £6.47
5	HV532 44 18-82 Available to backorder	Dash	£65.96 £54.97
14	HV532 44 80-42 Available to backorder	Hood	£224.40 £187.00
15	HV581 10 31-01 Available to backorder	Lens	£18.76 £15.63
25	HV581 10 30-01 Available to backorder	Lens	£18.76 £15.63
37	HV532 44 08-49 Available to backorder	Fender	£270.72 £225.60
62	HV872 11 06-08 Available to backorder	Bolt	£7.12 £5.93
68	HV817 06 05-16 Available to backorder	Screw	£5.04 £4.20
119	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
130	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
150	HV584 86 29-01 Available to backorder	Duct	£53.88 £44.90
151	HV532 44 54-94 Available to backorder	Bracket	£52.02 £43.35
152	HV532 19 95-35 Available to backorder	Shield	£48.52 £40.43
159	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
162	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-28 Available to backorder	Bushing	£10.78 £8.98
180	HV583 90 27-01 Available to backorder	Chassis	£195.00 £162.50
182	HV586 73 86-02 Available to backorder	Dash	£119.68 £99.73
183	HV874 52 05-20 Available to backorder	Bolt	£4.78 £3.98
189	HV532 42 88-67 Available to backorder	Screw	£4.02 £3.35
191	HV581 22 35-01 Available to backorder	Reflector	£6.34 £5.28
194	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
202	HV581 85 91-01 Available to backorder	Vent	£20.06 £16.72
203	HV581 85 92-01 Available to backorder	Vent	£20.06 £16.72
228	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
235	HV532 40 61-29 Available to backorder	Spacer	£9.16 £7.63
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
283	HV532 44 76-71 Available to backorder	Console	£89.28 £74.40
284	HV532 44 72-11 Available to backorder	Console	£78.28 £65.23
287	HV817 60 04-06 Available to backorder	Screw	£1.80 £1.50
297	HV581 22 36-01 Available to backorder	Reflector	£4.26 £3.55
303	HV587 49 31-02 Available to backorder	Shield	£27.12 £22.60
304	HV587 49 27-02 Available to backorder	Shield	£28.46 £23.72
307	HV587 49 45-01 Available to backorder	Shield	£34.94 £29.12
308	HV532 17 18-77 Available to backorder	Bolt	£5.04 £4.20
319	HV581 31 39-06 Available to backorder	Lever	£10.36 £8.63
339	HV583 51 03-01 Available to backorder	Lever	£7.76 £6.47
340	HV581 32 89-06 Available to backorder	Battery	£179.84 £149.87
349	HV583 50 97-01 Available to backorder	Support	£12.94 £10.78
368	HV581 42 48-01 Available to backorder	Shroud	£5.18 £4.32
