McCulloch M20-42T - 96042014501 - 2012-12 - Engine Parts Diagram

Name: McCulloch M20-42T - 96042014501 - 2012-12 - Engine Parts Diagram
SKU: m20_42t_96042014501_2012_12_engine-group
Price: 0.64 GBP
Availability: InStock

Part No. m20_42t_96042014501_2012_12_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M20-42T - 96042014501 - 2012-12 - Engine Parts Diagram

Description

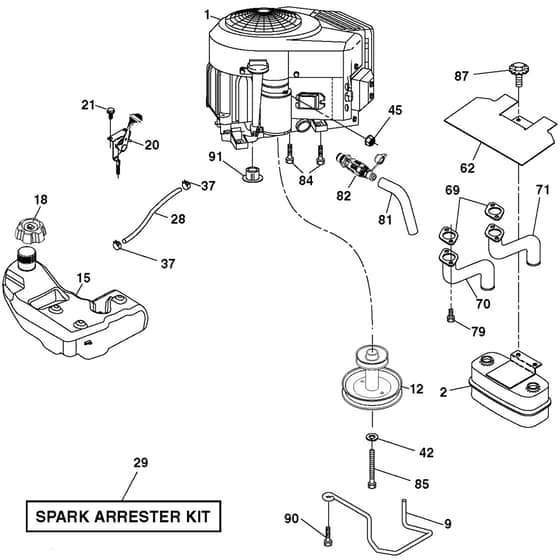

McCulloch M20-42T - 96042014501 - 2012-12 - Engine Parts Diagram

	Part No.	Details
2	HV532 14 97-23 Available to backorder	Muffler	£152.04 £126.70
9	HV584 91 16-01 Available to backorder	Keeper	£19.88 £16.57
12	HV532 40 19-85 Available to backorder	Pulley	£161.28 £134.40
20	HV532 42 35-02 Available to backorder	Control	£17.32 £14.43
21	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
28	HV532 13 70-40 Available to backorder	Hose	£15.25 £12.71
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£46.73 £38.94
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
42	HV810 04 07-00 Available to backorder	Washer	£3.12 £2.60
62	HV532 43 40-17 Available to backorder	Shield	£22.44 £18.70
69	HV532 16 53-91 Available to backorder	Gasket	£5.99 £4.99
70	HV581 88 11-01 Available to backorder	Tube	£37.62 £31.35
79	HV532 18 39-06 Available to backorder	Screw	£4.50 £3.75
82	HV532 42 82-87 Available to backorder	Plug	£12.00 £10.00
84	HV817 06 06-20 Available to backorder	Screw	£5.75 £4.79
85	HV532 17 39-37 Available to backorder	Bolt	£2.56 £2.13
87	HV532 17 18-77 Available to backorder	Bolt	£5.02 £4.18
90	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
91	HV532 18 74-95 Available to backorder	Bushing	£8.98 £7.48
