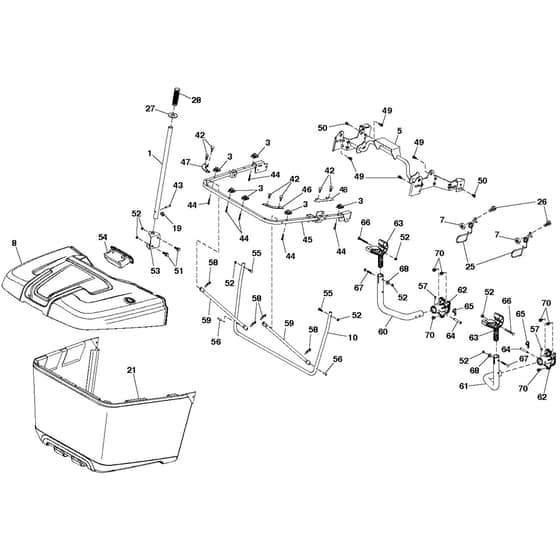

McCulloch M185107HRB - 96051005200 - 2011-12 - Bagger Parts Diagram

Name: McCulloch M185107HRB - 96051005200 - 2011-12 - Bagger Parts Diagram
SKU: m185107hrb_96051005200_2011_12_bagger-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M185107HRB - 96051005200 - 2011-12 - Bagger Parts Diagram

Description

McCulloch M185107HRB - 96051005200 - 2011-12 - Bagger Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 42 86-10 Available to backorder	Tube	£32.76 £27.30
3	HV532 17 48-14 Available to backorder	Nut	£2.06 £1.72
7	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
19	HV532 19 42-08 Available to backorder	Pin	£1.64 £1.37
28	HV532 16 57-87 Available to backorder	Handle	£10.09 £8.41
43	HV532 12 68-75 Available to backorder	Rivet	£2.40 £2.00
44	HV532 19 96-87 Available to backorder	Screw	£3.62 £3.02
50	HV532 17 18-77 Available to backorder	Bolt	£5.04 £4.20
51	HV872 11 05-06 Available to backorder	Bolt	£4.02 £3.35
52	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
54	HV532 44 75-43 Available to backorder	Frame	£20.02 £16.68
56	HV532 42 03-06 Available to backorder	Clevis Pin	£6.08 £5.07
57	HV532 19 98-55 Available to backorder	Screw	£1.58 £1.32
58	HV532 08 51-79 Available to backorder	Clip	£0.77 £0.64
60	HV532 44 41-05 Available to backorder	Tube	£113.22 £94.35
61	HV532 44 41-06 Available to backorder	Tube	£98.04 £81.70
65	HV532 00 44-97 Available to backorder	Retainer Ring	£1.76 £1.47
66	HV532 44 67-23 Available to backorder	Bolt	£7.12 £5.93
70	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
