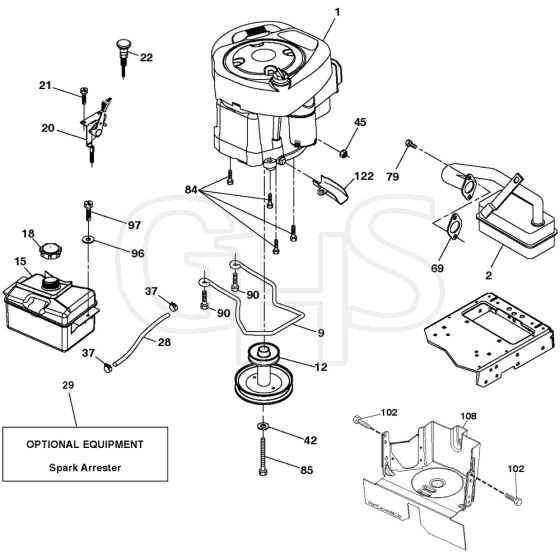

McCulloch M185-107TC - 96051006703 - 2014-05 - Engine Parts Diagram

Name: McCulloch M185-107TC - 96051006703 - 2014-05 - Engine Parts Diagram
SKU: m185_107tc_96051006703_2014_05_engine-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M185-107TC - 96051006703 - 2014-05 - Engine Parts Diagram

Description

McCulloch M185-107TC - 96051006703 - 2014-05 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 13 73-52 Available to backorder	Muffler	£106.88 £89.07
9	HV596 50 15-02 Available to backorder	Keeper	£15.68 £13.07
12	HV586 47 85-01 In stock	Pulley	£21.60 £18.00
15	HV581 28 99-01 In stock	Fuel Tank	£59.52 £49.60
18	HV581 07 55-01 Available to backorder	Fuel Cap	£31.04 £25.87
21	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
28	HV532 13 70-40 Available to backorder	Hose	£15.08 £12.57
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£47.16 £39.30
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
42	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
69	HV532 27 22-93 In stock	Gasket	£4.74 £3.95
79	HV596 13 42-01 Available to backorder	Screw	£3.96 £3.30
84	HV817 06 06-20 Available to backorder	Screw	£7.12 £5.93
85	HV532 17 39-37 Available to backorder	Bolt	£9.76 £8.13
90	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
96	HV819 09 14-16 Available to backorder	Washer	£3.12 £2.60
97	HV817 67 04-12 Available to backorder	Screw	£5.32 £4.43
102	HV817 06 05-16 Available to backorder	Screw	£5.04 £4.20
108	HV587 17 95-02 Available to backorder	Cover	£47.16 £39.30
122	HV532 42 19-22 Available to backorder	Extension Pipe	£6.94 £5.78
