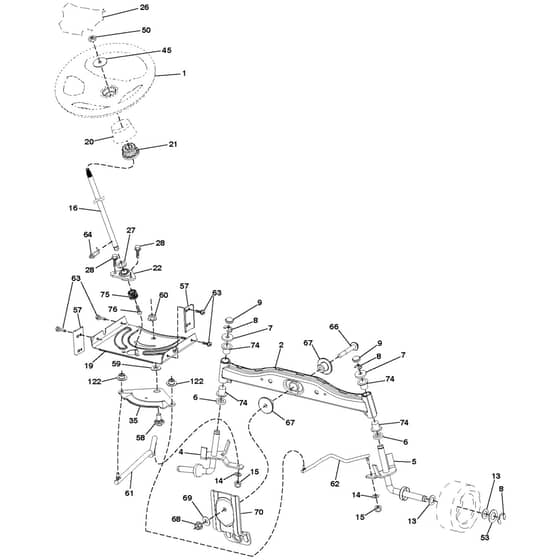

McCulloch M185-107T - 96041037800 - 2014-05 - Steering Parts Diagram

Name: McCulloch M185-107T - 96041037800 - 2014-05 - Steering Parts Diagram
SKU: m185_107t_96041037800_2014_05_steering-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M185-107T - 96041037800 - 2014-05 - Steering Parts Diagram

Description

McCulloch M185-107T - 96041037800 - 2014-05 - Steering Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 44 28-04 Available to backorder	Steering Wheel	£103.52 £86.27
2	HV531 17 11-01 Available to backorder	Axle	£124.92 £104.10
4	HV596 87 36-01 Available to backorder	Spindle	£67.32 £56.10
6	HV532 00 62-66 Available to backorder	Washer	£2.84 £2.37
7	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
8	HV812 00 00-29 Available to backorder	Retainer Ring	£0.89 £0.74
9	HV532 12 12-32 Available to backorder	Hub Cap	£5.42 £4.52
13	HV532 12 17-49 In stock	Washer	£3.28 £2.73
16	HV587 01 60-02 Available to backorder	Shaft	£7.84 £6.53
19	HV532 19 47-29 Available to backorder	Plate	£80.22 £66.85
22	HV587 73 89-01 Available to backorder	Bearing	£12.60 £10.50
26	HV532 44 77-59 Available to backorder	Cap	£21.36 £17.80
27	HV819 21 16-16 Available to backorder	Washer	£2.84 £2.37
28	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
35	HV532 19 47-32 Available to backorder	Plate	£80.22 £66.85
50	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
53	HV532 18 89-67 In stock	Washer	£5.04 £4.20
58	HV532 19 47-47 Available to backorder	Bolt	£13.58 £11.32
59	HV532 19 47-48 Available to backorder	Washer	£4.92 £4.10
61	HV597 04 78-02 Available to backorder	Link	£55.72 £46.43
62	HV597 04 79-02 Available to backorder	Link	£75.52 £62.93
63	HV532 42 88-67 Available to backorder	Screw	£4.02 £3.35
64	HV532 19 98-49 Available to backorder	Spring Retainer	£3.48 £2.90
66	HV871 02 07-48 In stock	Bolt	£9.46 £7.88
67	HV532 19 47-37 Available to backorder	Bushing	£21.36 £17.80
68	HV873 90 07-00 In stock	Nut	£4.92 £4.10
69	HV532 19 91-62 Available to backorder	Washer	£9.72 £8.10
70	HV585 33 88-01 Available to backorder	Bracket	£32.36 £26.97
74	HV532 00 33-66 Available to backorder	Bearing Col. Strg.	£5.68 £4.73
75	HV587 73 89-06 Available to backorder	Pinion	£4.26 £3.55
76	HV580 68 36-01 Available to backorder	Screw	£1.82 £1.52
