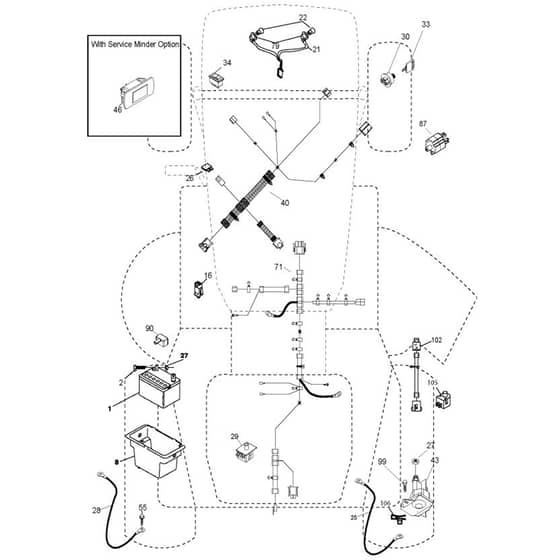

McCulloch M17538H - 96041023201 - 2012-06 - Electrical Parts Diagram

Name: McCulloch M17538H - 96041023201 - 2012-06 - Electrical Parts Diagram
SKU: m17538h_96041023201_2012_06_electrical-group
Price: 1.67 GBP
Availability: InStock

Part No. m17538h_96041023201_2012_06_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M17538H - 96041023201 - 2012-06 - Electrical Parts Diagram

Description

McCulloch M17538H - 96041023201 - 2012-06 - Electrical Parts Diagram

	Part No.	Details
1	HV547 85 37-01 Available to backorder	Battery	£115.92 £96.60
2	HV874 76 04-12 Available to backorder	Bolt	£2.00 £1.67
8	HV532 19 32-28 Available to backorder	Box	£56.40 £47.00
16	HV532 17 61-38 Available to backorder	Micro Switch	£15.28 £12.73
22	HV532 00 41-52 Available to backorder	Bulb	£4.28 £3.57
25	HV581 49 80-01 Available to backorder	Cable	£15.38 £12.82
26	HV532 17 51-58 Available to backorder	Fuse	£5.63 £4.69
29	HV532 40 15-45 Available to backorder	Switch	£23.89 £19.91
30	HV532 19 33-50 Available to backorder	Ignition Module	£25.09 £20.91
33	HV532 41 19-33 Available to backorder	Key	£10.37 £8.64
34	HV532 11 07-12 Available to backorder	Switch	£16.98 £14.15
40	HV581 02 31-01 Available to backorder	Harness	£62.64 £52.20
43	HV582 04 28-02 In stock	Solenoid	£18.58 £15.48
71	HV581 02 30-01 Available to backorder	Harness	£76.56 £63.80
87	HV532 19 78-02 Available to backorder	Switch	£17.59 £14.66
90	HV532 43 53-95 Available to backorder	Terminal Cover	£6.29 £5.24
99	HV817 67 04-12 Available to backorder	Screw	£5.24 £4.37
105	HV532 40 75-68 Available to backorder	Switch	£17.42 £14.52
106	HV532 17 48-14 Available to backorder	Nut	£2.05 £1.71
