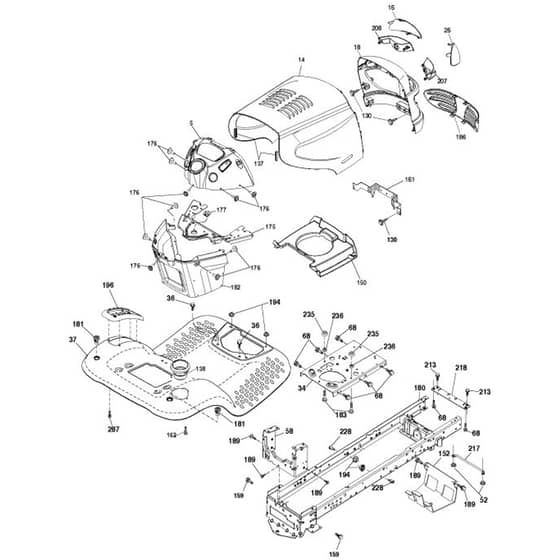

McCulloch M17538H - 96041017801 - 2011-04 - Chassis & Enclosures Parts Diagram

Name: McCulloch M17538H - 96041017801 - 2011-04 - Chassis & Enclosures Parts Diagram
SKU: m17538h_96041017801_2011_04_chassis_enclosures-group
Price: 1.5 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M17538H - 96041017801 - 2011-04 - Chassis & Enclosures Parts Diagram

Description

McCulloch M17538H - 96041017801 - 2011-04 - Chassis & Enclosures Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
25	HV532 18 97-55 Available to backorder	Lens Grille Rh	£23.28 £19.40
68	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
130	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
137	HV532 18 49-21 Available to backorder	Bumper	£7.20 £6.00
151	HV532 40 78-07 Available to backorder	Bracket	£51.76 £43.13
152	HV532 19 95-35 Available to backorder	Shield	£48.52 £40.43
159	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
162	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-28 Available to backorder	Bushing	£10.78 £8.98
180	HV532 41 50-63 Available to backorder	Frame	£341.88 £284.90
183	HV874 52 05-20 Available to backorder	Bolt	£4.78 £3.98
189	HV532 42 88-67 Available to backorder	Screw	£4.02 £3.35
194	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
196	HV532 41 45-79 Available to backorder	Console	£34.28 £28.57
207	HV532 18 38-33 Available to backorder	Support De Phare Droit	£29.54 £24.62
208	HV532 18 38-32 Available to backorder	Support De Phare Gauche	£30.18 £25.15
228	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
235	HV532 40 61-29 Available to backorder	Spacer	£9.16 £7.63
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
287	HV817 60 04-06 Available to backorder	Screw	£1.80 £1.50
