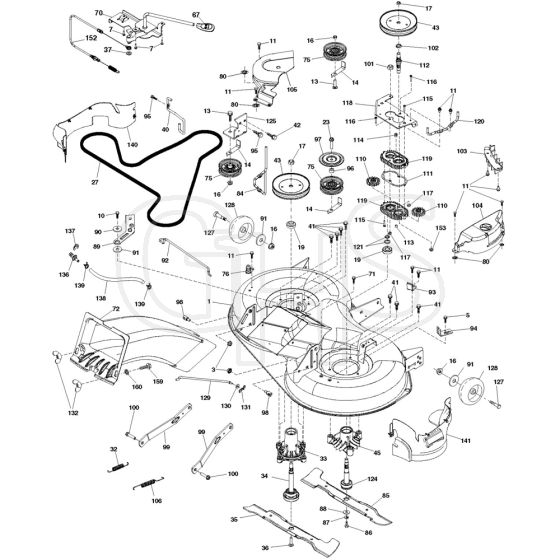

McCulloch M165-97TC CLASSIC - 96051016600 - 2017-07 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M165-97TC CLASSIC - 96051016600 - 2017-07 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
33	HV587 81 97-01 Available to backorder	Mandrel Assembly (Includes Assembly (Key# 33)+ Shaft Assembly (Key# 34) And Bearing (Key# 19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included. (--)	£158.64 £132.20
0	HV583 59 82-01 Available to backorder	Cutting Deck (--)	£770.99 £642.49
1	HV596 58 24-01 Available to backorder	Deck (--)	£836.40 £697.00
1	HV583 51 39-01 Available to backorder	Deck	£257.52 £214.60
2	HV532 42 30-62 Available to backorder	Nut	£1.20 £1.00
3	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
5	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
7	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
9	HV585 69 13-01 Available to backorder	Nut	£2.94 £2.45
10	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
11	HV532 13 77-29 In stock	Screw	£2.22 £1.85
13	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
16	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
17	HV596 13 48-01 Available to backorder	Hexagon Nut	£1.51 £1.26
18	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
19	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
21	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
23	HV817 49 06-28 Available to backorder	Screw	£8.03 £6.69
27	HV532 43 97-26 In stock	Belt	£57.24 £47.70
27	HV599 36 53-01 In stock	Belt	£63.65 £53.04
32	HV532 40 18-72 Available to backorder	Spring	£7.18 £5.98
35	HV532 42 79-84 In stock	Ride On Blade	£26.64 £22.20
36	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
36	HV532 00 44-97 Available to backorder	Clip	£1.49 £1.24
40	HV531 16 95-01 Available to backorder	Belt Guide	£19.57 £16.31
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
42	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
43	HV532 19 59-45 Available to backorder	Pulley	£55.91 £46.59
44	HV532 19 95-34 In stock	Pulley	£18.66 £15.55
45	HV532 13 71-52 Available to backorder	Bearing Housing	£64.08 £53.40
49	HV532 16 55-79 Available to backorder	Spindle	£122.64 £102.20
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
70	HV532 40 12-46 Available to backorder	Clutch	£61.80 £51.50
71	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
72	HV582 03 56-01 Available to backorder	Chute	£86.76 £72.30
75	HV597 02 50-01 In stock	Pulley	£53.39 £44.49
78	HV593 78 78-01 In stock	Pulley	Was £56.14 £46.78 Special Price £37.74 £31.45
85	HV532 42 79-85 In stock	Blade	£26.64 £22.20
86	HV583 11 70-01 Available to backorder	Bolt	£7.18 £5.98
87	HV596 23 87-01 Available to backorder	Washer	£2.54 £2.12
88	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
90	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
93	HV592 85 49-02 Available to backorder	Brake	£25.00 £20.83
94	HV532 19 72-50 Available to backorder	Bracket	£8.98 £7.48
95	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
98	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
100	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
102	HV532 40 25-11 Available to backorder	Spacer	£7.06 £5.88
104	HV532 43 89-68 Available to backorder	Mandrel	£44.48 £37.07
105	HV583 53 40-01 Available to backorder	Mandrel	£51.54 £42.95
106	HV532 19 32-16 Available to backorder	Ressort Retour Frein De Lame	£6.79 £5.66
110	HV587 93 48-01 Available to backorder	Gear	£45.29 £37.74
111	HV583 51 40-01 Available to backorder	Gasket	£9.00 £7.50
114	HV588 17 05-01 Available to backorder	Breather	£15.38 £12.82
117	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
119	HV583 52 76-01 Available to backorder	Gearcase	£64.92 £54.10
120	HV531 16 97-01 Available to backorder	Belt Guide	£14.36 £11.97
122	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
127	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
128	HV589 52 73-01 Available to backorder	Wheel	£20.74 £17.28
129	HV532 40 48-51 Available to backorder	Rod	£21.16 £17.63
130	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
131	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
132	HV532 17 88-99 Available to backorder	Knob	£5.75 £4.79
137	HV812 00 00-29 In stock	Retainer Ring	£0.77 £0.64
138	HV532 44 07-43 Available to backorder	Hose	£7.14 £5.95
139	HV532 44 07-42 Available to backorder	Clamp	£1.02 £0.85
140	HV501 57 94-01 Available to backorder	Guard	£65.64 £54.70
141	HV501 57 93-02 Available to backorder	Guard	£73.68 £61.40
152	HV583 54 84-01 Available to backorder	Cable	£50.89 £42.41
159	HV596 98 75-01 Available to backorder	Bolt	£7.06 £5.88
