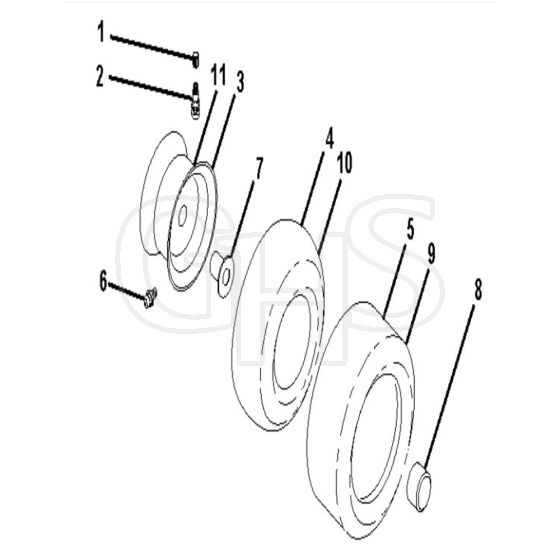

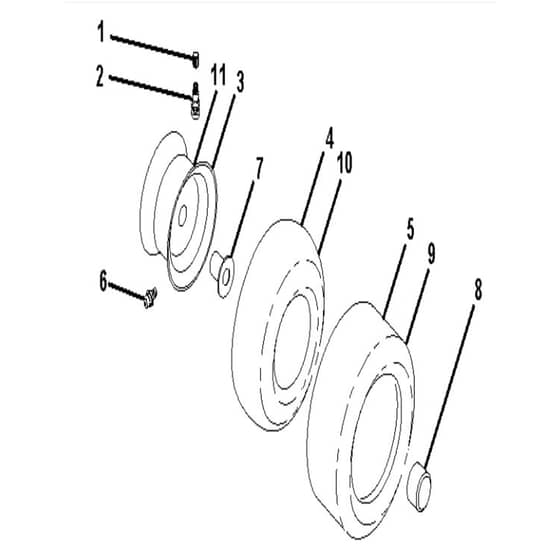

McCulloch M165-97T - 96041040700 - 2017-06 - Wheels and Tyres Parts Diagram

Name: McCulloch M165-97T - 96041040700 - 2017-06 - Wheels and Tyres Parts Diagram
SKU: m165_97t_96041040700_2017_06_wheels_and_tyres-group
Price: 4.36 GBP
Availability: InStock

Part No. m165_97t_96041040700_2017_06_wheels_and_tyres-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M165-97T - 96041040700 - 2017-06 - Wheels and Tyres Parts Diagram

Description

McCulloch M165-97T - 96041040700 - 2017-06 - Wheels and Tyres Parts Diagram

	Part No.	Details
1	HV532 05 91-92 Available to backorder	Cap Valve	£6.29 £5.24
2	HV532 06 51-39 Available to backorder	Nipple	£5.23 £4.36
4	HV532 05 99-04 Available to backorder	Hose (Service Item Only)	£26.74 £22.28
5	HV532 12 20-73 Available to backorder	Tyre Front 15" x 6.0"-6"	£62.04 £51.70
6	HV532 00 02-78 Available to backorder	Nipple (Front Wheel Only)	£7.70 £6.42
7	HV532 00 90-40 In stock	Bearing (Front Wheel Only)	£18.38 £15.32
8	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
9	HV532 13 27-03 Available to backorder	Tyre Rear 18 x 8.5-8	£74.16 £61.80
10	HV532 00 71-52 Available to backorder	Tube (Service Item Only)	£26.26 £21.88
11	HV532 10 61-08 Available to backorder	Rim Rear 8"	£140.16 £116.80
