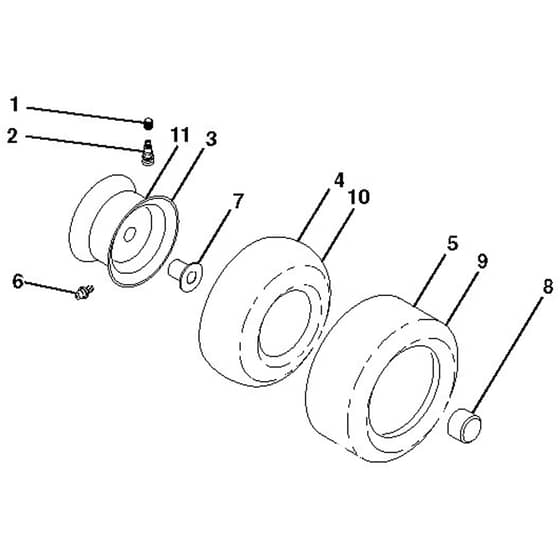

McCulloch M165-107T - 96041035500 - 2013-06 - Wheels and Tyres Parts Diagram

Name: McCulloch M165-107T - 96041035500 - 2013-06 - Wheels and Tyres Parts Diagram
SKU: m165_107t_96041035500_2013_06_wheels_and_tyres-group
Price: 4.36 GBP
Availability: InStock

Part No. m165_107t_96041035500_2013_06_wheels_and_tyres-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M165-107T - 96041035500 - 2013-06 - Wheels and Tyres Parts Diagram

Description

McCulloch M165-107T - 96041035500 - 2013-06 - Wheels and Tyres Parts Diagram

	Part No.	Details
1	HV532 05 91-92 Available to backorder	Cap Valve	£6.29 £5.24
2	HV532 06 51-39 Available to backorder	Nipple	£5.23 £4.36
4	HV532 05 99-04 Available to backorder	Hose (Service Item Only)	£26.74 £22.28
5	HV532 12 20-73 Available to backorder	Tire Front	£62.04 £51.70
7	HV532 00 90-40 In stock	Bearing (Front Wheel Only)	£18.38 £15.32
8	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
9	HV532 13 84-68 Available to backorder	Tire Rear	£81.72 £68.10
11	HV532 10 61-08 Available to backorder	Rim Rear	£140.16 £116.80
