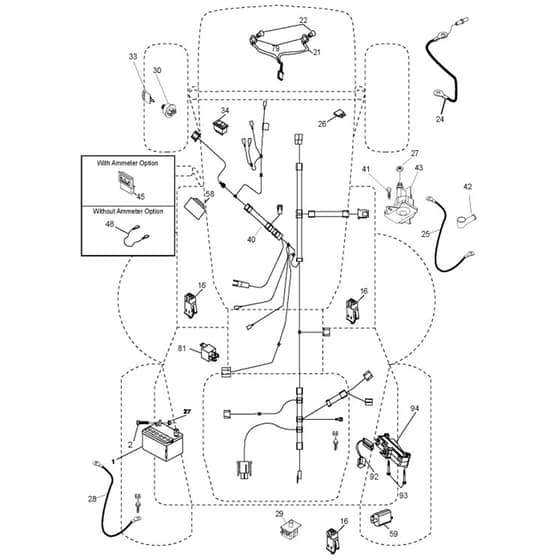

McCulloch M155107HRB - 96061031500 - 2010-09 - Electrical Parts Diagram

Name: McCulloch M155107HRB - 96061031500 - 2010-09 - Electrical Parts Diagram
SKU: m155107hrb_96061031500_2010_09_electrical-group
Price: 2.15 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155107HRB - 96061031500 - 2010-09 - Electrical Parts Diagram

Description

McCulloch M155107HRB - 96061031500 - 2010-09 - Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV577 04 16-01 Available to backorder	Battery	£119.98 £99.98
2	HV874 76 04-12 Available to backorder	Bolt	£2.58 £2.15
16	HV532 17 61-38 Available to backorder	Micro Switch	£14.32 £11.93
22	HV532 00 41-52 Available to backorder	Bulb	£4.49 £3.74
24	HV532 42 12-99 Available to backorder	Cable	£23.12 £19.27
25	HV532 16 59-87 Available to backorder	Cable	£38.00 £31.67
26	HV532 17 51-58 Available to backorder	Fuse	£5.68 £4.73
29	HV532 19 27-49 Available to backorder	Switch.Seat.Dp W/Ramps	£18.56 £15.47
30	HV532 19 33-50 Available to backorder	Ignition Module	£31.08 £25.90
33	HV532 41 19-35 Available to backorder	Key	£10.48 £8.73
34	HV532 11 07-12 Available to backorder	Switch	£17.14 £14.28
40	HV532 19 74-36 Available to backorder	Cable Assy	£113.18 £94.32
43	HV582 04 28-02 In stock	Solenoid	£21.96 £18.30
59	HV583 10 07-01 Available to backorder	Switch Fbi	£17.94 £14.95
66	HV817 49 06-08 Available to backorder	Screw	£5.32 £4.43
81	HV532 10 97-48 Available to backorder	Relay	£15.54 £12.95
94	HV532 19 18-34 Available to backorder	Module.Reverse.Ros	£22.84 £19.03
