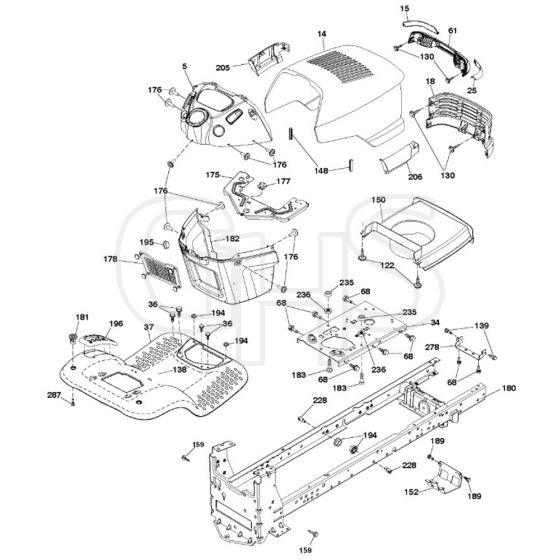

McCulloch M155107H - 96041001004 - 2010-07 - Chassis & Enclosures Parts Diagram

Name: McCulloch M155107H - 96041001004 - 2010-07 - Chassis & Enclosures Parts Diagram
SKU: m155107h_96041001004_2010_07_chassis_enclosures-group
Price: 1.48 GBP
Availability: InStock

Part No. m155107h_96041001004_2010_07_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155107H - 96041001004 - 2010-07 - Chassis & Enclosures Parts Diagram

Description

McCulloch M155107H - 96041001004 - 2010-07 - Chassis & Enclosures Parts Diagram

	Part No.	Details
68	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
130	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
152	HV532 19 95-35 Available to backorder	Shield	£48.07 £40.06
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-27 Available to backorder	Bushing	£11.09 £9.24
183	HV874 52 05-20 Available to backorder	Bolt	£4.74 £3.95
189	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
287	HV817 60 04-06 Available to backorder	Screw	£1.78 £1.48
