McCulloch M155107H - 96041000701 - 2009-01 - Chassis & Enclosures Parts Diagram

Name: McCulloch M155107H - 96041000701 - 2009-01 - Chassis & Enclosures Parts Diagram
SKU: m155107h_96041000701_2009_01_chassis_enclosures-group
Price: 1.71 GBP
Availability: InStock

Part No. m155107h_96041000701_2009_01_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155107H - 96041000701 - 2009-01 - Chassis & Enclosures Parts Diagram

Description

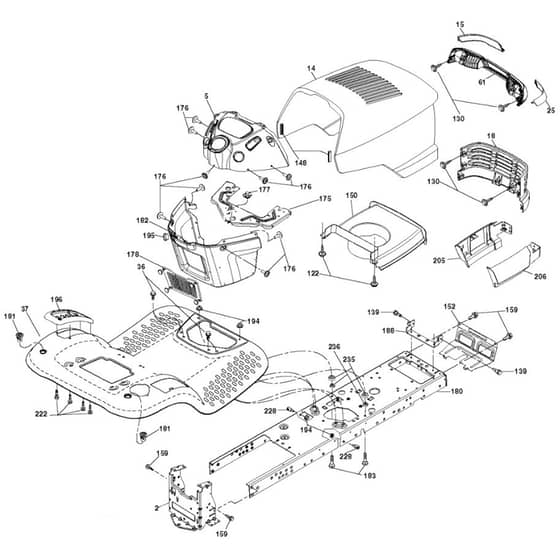

McCulloch M155107H - 96041000701 - 2009-01 - Chassis & Enclosures Parts Diagram

	Part No.	Details
152	HV532 19 43-29 Available to backorder	Shield	£25.96 £21.63
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-27 Available to backorder	Bushing	£11.09 £9.24
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
222	HV532 13 77-29 In stock	Screw	£2.22 £1.85
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
