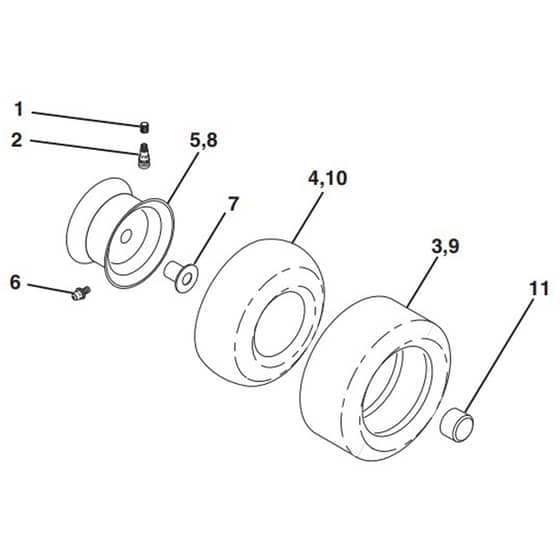

McCulloch M155-107TC - 96051006501 - 2013-01 - Wheels and Tyres Parts Diagram

Name: McCulloch M155-107TC - 96051006501 - 2013-01 - Wheels and Tyres Parts Diagram
SKU: m155_107tc_96051006501_2013_01_wheels_and_tyres-group
Price: 4.36 GBP
Availability: InStock

Part No. m155_107tc_96051006501_2013_01_wheels_and_tyres-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155-107TC - 96051006501 - 2013-01 - Wheels and Tyres Parts Diagram

Description

McCulloch M155-107TC - 96051006501 - 2013-01 - Wheels and Tyres Parts Diagram

	Part No.	Details
1	HV532 05 91-92 Available to backorder	Cap Valve	£6.29 £5.24
2	HV532 06 51-39 Available to backorder	Nipple	£5.23 £4.36
3	HV532 12 20-73 Available to backorder	Tyre Front 15" x 6.0"-6"	£62.04 £51.70
4	HV532 05 99-04 Available to backorder	Hose (Service Item Only)	£26.74 £22.28
7	HV532 00 90-40 In stock	Bearing (Front Wheel Only)	£18.38 £15.32
8	HV532 10 61-08 Available to backorder	Rim Rear 8"	£140.16 £116.80
9	HV532 42 05-31 Available to backorder	Tyre Rear 18" x 9.5"-8"	£84.60 £70.50
11	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
