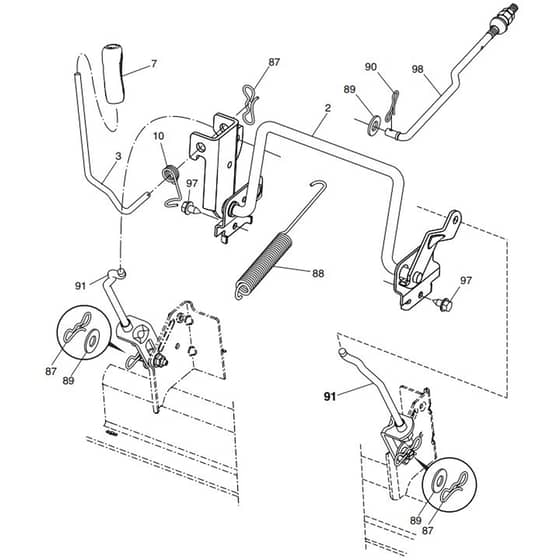

McCulloch M155-107TC - 96051006501 - 2013-01 - Mower Lift - Deck Lift Parts Diagram

Name: McCulloch M155-107TC - 96051006501 - 2013-01 - Mower Lift - Deck Lift Parts Diagram
SKU: m155_107tc_96051006501_2013_01_mower_lift_deck_lift-group
Price: 1.16 GBP
Availability: InStock

Part No. m155_107tc_96051006501_2013_01_mower_lift_deck_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155-107TC - 96051006501 - 2013-01 - Mower Lift - Deck Lift Parts Diagram

Description

McCulloch M155-107TC - 96051006501 - 2013-01 - Mower Lift - Deck Lift Parts Diagram

	Part No.	Details
7	HV532 41 15-55 Available to backorder	Grip	£10.43 £8.69
87	HV532 19 42-09 Available to backorder	Spring	£3.74 £3.12
88	HV583 58 00-01 Available to backorder	Spring	£22.44 £18.70
89	HV819 19 19-12 Available to backorder	Washer	£3.85 £3.21
90	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
91	HV532 19 51-81 Available to backorder	Link	£45.52 £37.93
97	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
