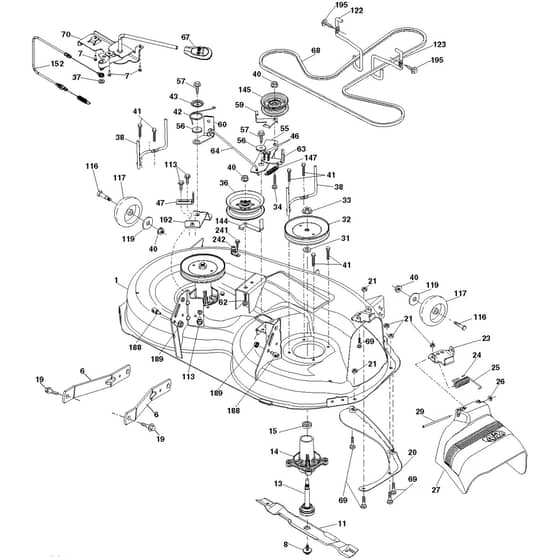

McCulloch M145107T - 96041029201 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M145107T - 96041029201 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram
SKU: m145107t_96041029201_2012_12_mower_deck_cutting_deck-group
Price: 1.26 GBP
Availability: InStock

Part No. m145107t_96041029201_2012_12_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M145107T - 96041029201 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M145107T - 96041029201 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
-1	HV532 19 28-70 Available to backorder	Spindle Mandrel Assembly (Includes Housing (Key # 14)+ Shaft Assembly (Key # 13) And Bearing Only (Key # 15) - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	£158.64 £132.20
0	HV532 43 77-30 Available to backorder	Cutting Deck (--)	£701.68 £584.73
7	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
8	HV532 19 30-03 Available to backorder	Screw	£13.87 £11.56
11	HV532 13 89-71 Available to backorder	Blade	£29.10 £24.25
14	HV587 81 97-01 Available to backorder	Bearing Housing	£158.64 £132.20
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
20	HV531 16 70-01 Available to backorder	Rail	£28.06 £23.38
23	HV532 19 25-57 Available to backorder	Hinge	£13.69 £11.41
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 19 70-26 Available to backorder	Torsion Spring	£11.74 £9.78
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 40 30-04 Available to backorder	Shield	£58.32 £48.60
29	HV595 29 70-01 In stock	Shaft	£10.15 £8.46
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 19 59-45 Available to backorder	Pulley	£55.91 £46.59
33	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
34	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
36	HV532 19 61-06 Available to backorder	Pulley	£97.56 £81.30
38	HV589 67 61-03 Available to backorder	Keeper	£13.03 £10.86
40	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
42	HV532 19 84-10 Available to backorder	Spring	£5.02 £4.18
43	HV532 19 72-56 Available to backorder	Spring	£4.99 £4.16
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
47	HV532 19 72-50 Available to backorder	Bracket	£8.98 £7.48
55	HV532 43 71-10 Available to backorder	Arm	£18.60 £15.50
56	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
57	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
62	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
63	HV532 19 94-78 Available to backorder	Arm	£24.14 £20.12
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
68	HV598 55 91-01 In stock	Belt	£66.84 £55.70
69	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
70	HV532 40 12-46 Available to backorder	Clutch	£61.80 £51.50
113	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
117	HV532 18 86-06 Available to backorder	Wheel	£14.98 £12.48
119	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
122	HV531 16 95-01 Available to backorder	Belt Guide	£19.57 £16.31
123	HV531 16 97-01 Available to backorder	Belt Guide	£14.36 £11.97
145	HV532 17 79-68 Available to backorder	Pulley	£61.00 £50.83
147	HV532 40 19-71 Available to backorder	Spring	£5.60 £4.67
152	HV532 43 51-11 In stock	Cable	£59.48 £49.57
188	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
189	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
195	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
241	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
242	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
