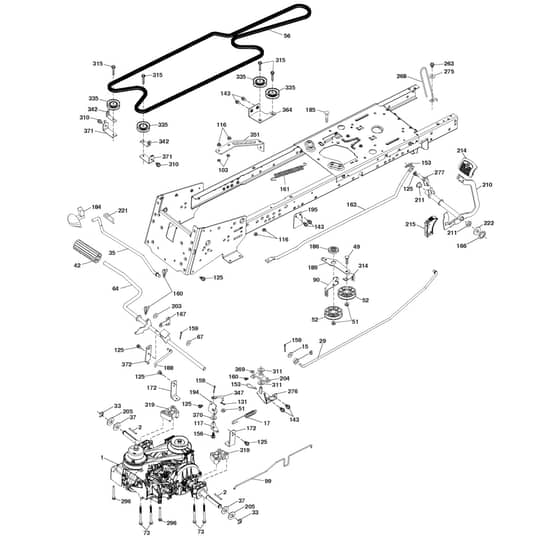

McCulloch M145-97TC - 96051006300 - 2012-11 - Drive Parts Diagram

Name: McCulloch M145-97TC - 96051006300 - 2012-11 - Drive Parts Diagram
SKU: m145_97tc_96051006300_2012_11_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M145-97TC - 96051006300 - 2012-11 - Drive Parts Diagram

Description

McCulloch M145-97TC - 96051006300 - 2012-11 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
6	HV532 12 42-08 Out of stock	Mandrel	£237.68 £198.07
17	HV580 32 52-01 Out of stock	Spring	£11.40 £9.50
29	HV581 18 74-01 Out of stock	Rod	£32.06 £26.72
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
35	HV532 40 10-31 Out of stock	Rod	£10.43 £8.69
37	HV532 18 89-67 Out of stock	Washer	£4.24 £3.53
49	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
51	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
52	HV532 19 43-26 Out of stock	Pulley	£34.79 £28.99
56	HV584 36 23-01 Out of stock	Belt	£93.74 £78.12
64	HV532 44 83-53 Out of stock	Shaft	£61.48 £51.23
67	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
73	HV580 83 04-01 Out of stock	Bolt	£2.56 £2.13
99	HV581 28 09-01 Out of stock	Rod	£8.56 £7.13
116	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
117	HV580 38 29-01 Out of stock	Bell Crank	£14.78 £12.32
125	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
143	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
156	HV580 36 90-01 Out of stock	Bolt	£2.20 £1.83
160	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
163	HV581 18 73-01 Out of stock	Rod	£21.06 £17.55
166	HV532 42 91-64 Out of stock	Nut	£1.42 £1.18
167	HV532 40 52-57 Out of stock	Latch	£4.74 £3.95
172	HV532 44 82-76 Out of stock	Strap	£9.92 £8.27
184	HV532 44 14-07 Out of stock	Brake	£11.20 £9.33
185	HV872 11 06-22 Out of stock	Bolt	£7.48 £6.23
186	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
188	HV532 19 43-23 Out of stock	Link	£7.91 £6.59
195	HV580 45 69-01 Out of stock	Bracket	£8.71 £7.26
203	HV734 11 63-01 Out of stock	Washer	£2.40 £2.00
205	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
210	HV532 44 82-70 Out of stock	Pedal	£54.88 £45.73
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
215	HV532 44 82-54 Out of stock	Pad	£10.08 £8.40
221	HV532 40 31-87 Out of stock	Spring	£3.14 £2.62
222	HV879 21 20-10 Out of stock	Washer	£4.66 £3.88
263	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
277	HV532 44 85-00 Out of stock	Link	£8.76 £7.30
296	HV532 42 04-71 Out of stock	Screw	£6.47 £5.39
310	HV817 49 06-08 Out of stock	Screw	£4.30 £3.58
314	HV580 45 74-01 Out of stock	Spacer	£9.00 £7.50
335	HV532 19 95-34 In stock	Pulley	£17.75 £14.79
370	HV878 12 16-32 Out of stock	Washer	£2.46 £2.05
372	HV581 47 52-01 Out of stock	Arm	£5.93 £4.94
