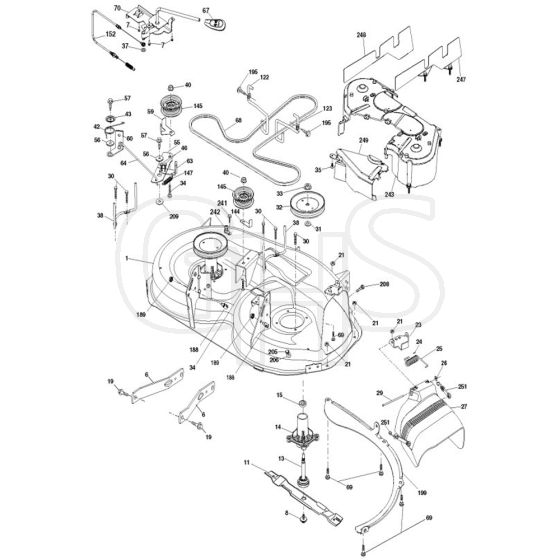

McCulloch M13597 - 96041009102 - 2010-07 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M13597 - 96041009102 - 2010-07 - Mower Deck - Cutting Deck Parts Diagram
SKU: m13597_96041009102_2010_07_mower_deck_cutting_deck-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13597 - 96041009102 - 2010-07 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M13597 - 96041009102 - 2010-07 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70 Available to backorder	Spindle (--)	£158.62 £132.18
0	HV532 43 16-91 Available to backorder	Cutting Deck (--)	£810.00 £675.00
1	HV547 56 50-01 Available to backorder	Housing	£257.88 £214.90
7	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
8	HV532 19 30-03 In stock	Screw	£15.85 £13.21
11	HV581 11 63-02 Available to backorder	Ride On Blade	£30.40 £25.33
14	HV587 81 97-01 Available to backorder	Bearing Housing	£158.62 £132.18
15	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
19	HV532 19 65-39 Available to backorder	Bolt	£6.18 £5.15
23	HV532 19 25-57 Available to backorder	Hinge	£13.58 £11.32
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
25	HV532 19 70-26 In stock	Torsion Spring	£11.52 £9.60
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
27	HV597 31 66-01 In stock	Deflector	£83.04 £69.20
29	HV595 29 70-01 Available to backorder	Shaft	£9.46 £7.88
30	HV584 95 39-01 Available to backorder	Screw	£5.44 £4.53
31	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
32	HV532 19 97-91 Available to backorder	Pulley	£44.21 £36.84
34	HV596 13 61-01 Available to backorder	Bolt	£6.54 £5.45
35	HV532 13 38-35 Available to backorder	xmas Tree Fastner	£1.28 £1.07
40	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
42	HV532 19 84-10 Available to backorder	Spring	£5.04 £4.20
43	HV532 19 72-56 Available to backorder	Spring	£5.12 £4.27
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
55	HV531 16 94-01 In stock	Arm	£19.13 £15.94
56	HV532 19 90-92 Available to backorder	Spacer	£6.94 £5.78
57	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
60	HV532 40 01-32 Available to backorder	Arm	£23.62 £19.68
63	HV532 40 01-30 Available to backorder	Arm	£20.82 £17.35
67	HV532 40 97-92 Available to backorder	Handle	£8.78 £7.32
68	HV532 40 83-81 Available to backorder	Belt	£56.64 £47.20
69	HV596 13 64-01 Available to backorder	Bolt	£3.26 £2.72
70	HV532 19 83-32 Available to backorder	Clutch	£54.68 £45.57
122	HV531 16 95-01 Available to backorder	Belt Guide	£18.73 £15.61
123	HV531 16 97-01 Available to backorder	Belt Guide	£14.04 £11.70
144	HV532 19 34-14 Available to backorder	Belt Guide	£7.12 £5.93
145	HV532 17 79-68 Available to backorder	Pulley	£58.94 £49.12
147	HV532 40 18-72 Available to backorder	Spring	£6.94 £5.78
152	HV532 43 51-11 Available to backorder	Cable	£70.32 £58.60
188	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
189	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
195	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
199	HV531 17 04-01 Available to backorder	Baffle	£28.80 £24.00
206	HV819 09 14-16 Available to backorder	Washer	£3.12 £2.60
208	HV817 67 06-08 Available to backorder	Screw	£5.32 £4.43
241	HV532 15 29-27 In stock	Screw	£2.58 £2.15
242	HV532 41 55-98 In stock	Hose Coupling	£6.08 £5.07
248	HV532 43 23-61 Available to backorder	Shield	£48.12 £40.10
249	HV532 40 65-14 Available to backorder	Cover	£23.54 £19.62
