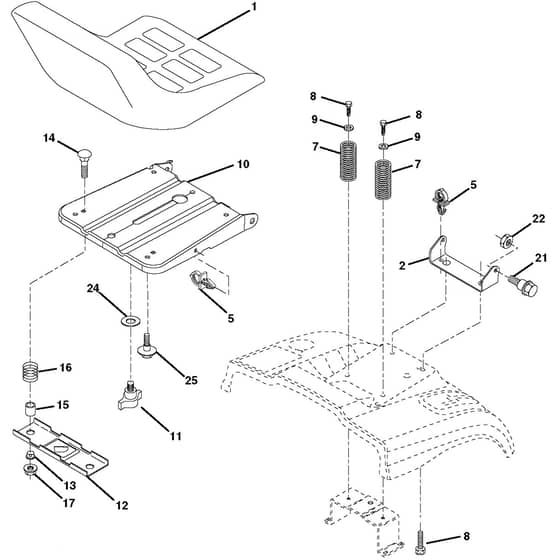

McCulloch M13592RB - 96061012402 - 2007-03 - Seat Parts Diagram

Name: McCulloch M13592RB - 96061012402 - 2007-03 - Seat Parts Diagram
SKU: m13592rb_96061012402_2007_03_seat-group
Price: 0.75 GBP
Availability: InStock

Part No. m13592rb_96061012402_2007_03_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13592RB - 96061012402 - 2007-03 - Seat Parts Diagram

Description

McCulloch M13592RB - 96061012402 - 2007-03 - Seat Parts Diagram

	Part No.	Details
2	HV532 14 05-51 Available to backorder	Bracket	£23.08 £19.23
3	HV871 11 06-16 Available to backorder	Screw	£5.78 £4.82
4	HV819 13 16-10 Available to backorder	Washer	£4.63 £3.86
5	HV532 14 50-06 Available to backorder	Clip	£0.90 £0.75
7	HV587 61 33-01 Available to backorder	Spring	£20.50 £17.08
8	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
10	HV532 19 55-30 Available to backorder	Berceau De Siege Conducteur	£76.80 £64.00
11	HV532 16 63-69 Available to backorder	Wing Nut	£10.43 £8.69
12	HV532 17 46-48 In stock	Bracket	Was £8.40 £7.00 Special Price £3.26 £2.72
13	HV532 12 12-48 Available to backorder	Bushing	£6.01 £5.01
14	HV872 05 04-12 Available to backorder	Bolt	£3.59 £2.99
15	HV532 13 43-00 Available to backorder	Spacer	£4.50 £3.75
16	HV532 12 12-50 Available to backorder	Spring	£4.50 £3.75
17	HV586 66 89-01 Available to backorder	Locknut	£2.94 £2.45
21	HV532 17 18-52 Available to backorder	Bolt	£5.16 £4.30
22	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
24	HV819 17 19-12 Available to backorder	Washer	£4.63 £3.86
25	HV532 12 70-18 Available to backorder	Bolt	£7.06 £5.88
