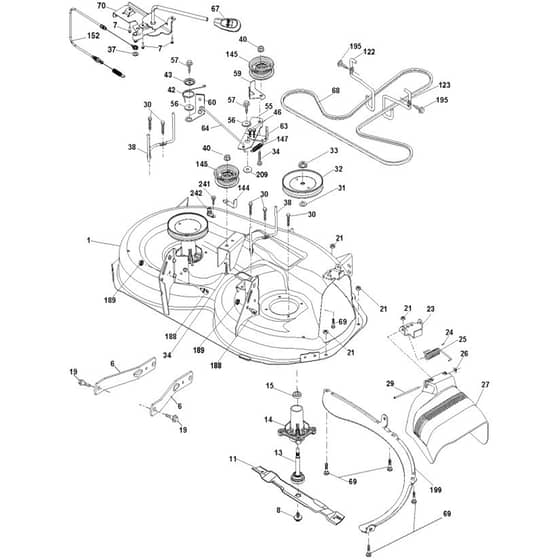

McCulloch M13538 - 96041017700 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M13538 - 96041017700 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram
SKU: m13538_96041017700_2010_01_mower_deck_cutting_deck-group
Price: 1.26 GBP
Availability: InStock

Part No. m13538_96041017700_2010_01_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13538 - 96041017700 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M13538 - 96041017700 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
-1	HV532 19 28-70 Available to backorder	Spindle (--)	£158.64 £132.20
1	HV547 56 50-01 Available to backorder	Housing	£270.48 £225.40
7	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
8	HV532 19 30-03 Available to backorder	Screw	£13.87 £11.56
11	HV581 11 63-02 In stock	Ride On Blade	£26.06 £21.72
14	HV587 81 97-01 Available to backorder	Bearing Housing	£158.64 £132.20
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
23	HV532 19 25-57 Available to backorder	Hinge	£13.69 £11.41
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 19 70-26 Available to backorder	Torsion Spring	£11.74 £9.78
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 40 14-72 Available to backorder	Deflector	£52.84 £44.03
29	HV595 29 70-01 In stock	Shaft	£10.15 £8.46
30	HV584 95 39-01 Available to backorder	Screw	£5.88 £4.90
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 19 97-91 In stock	Pulley	£38.28 £31.90
33	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
34	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
40	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
42	HV532 19 84-10 Available to backorder	Spring	£5.02 £4.18
43	HV532 19 72-56 Available to backorder	Spring	£4.99 £4.16
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
55	HV531 16 94-01 In stock	Arm	£19.21 £16.01
56	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
57	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
60	HV532 40 01-32 Available to backorder	Arm	£15.66 £13.05
63	HV532 40 01-30 Available to backorder	Arm	£21.53 £17.94
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
68	HV532 40 83-81 In stock	Belt	£47.87 £39.89
69	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
70	HV532 19 83-32 Available to backorder	Clutch	£53.54 £44.62
122	HV531 16 95-01 Available to backorder	Belt Guide	£19.57 £16.31
123	HV531 16 97-01 Available to backorder	Belt Guide	£14.36 £11.97
144	HV532 19 34-14 Available to backorder	Belt Guide	£7.06 £5.88
145	HV532 17 79-68 Available to backorder	Pulley	£61.00 £50.83
147	HV532 40 18-72 Available to backorder	Spring	£7.18 £5.98
152	HV532 43 51-11 In stock	Cable	£59.48 £49.57
188	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
189	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
195	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
199	HV531 17 04-01 In stock	Baffle	£28.80 £24.00
241	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
242	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
