McCulloch M13538 - 96011024401 - 2009-04 - Electrical Parts Diagram

Name: McCulloch M13538 - 96011024401 - 2009-04 - Electrical Parts Diagram
SKU: m13538_96011024401_2009_04_electrical-group
Price: 1.67 GBP
Availability: InStock

Part No. m13538_96011024401_2009_04_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13538 - 96011024401 - 2009-04 - Electrical Parts Diagram

Description

McCulloch M13538 - 96011024401 - 2009-04 - Electrical Parts Diagram

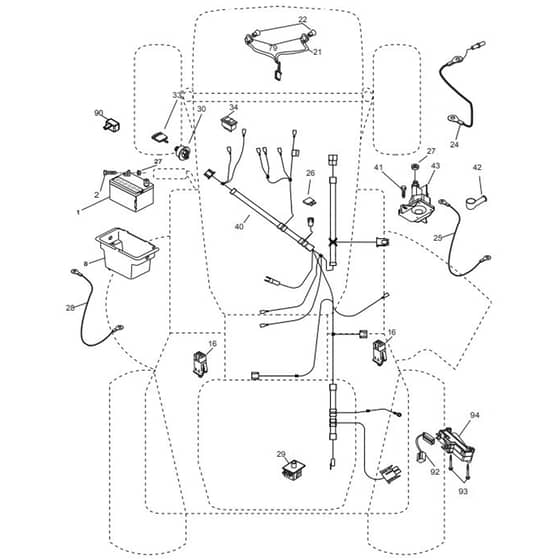

	Part No.	Details
1	HV547 85 37-01 Available to backorder	Battery	£115.92 £96.60
2	HV874 76 04-12 Available to backorder	Bolt	£2.00 £1.67
8	HV532 17 66-89 Available to backorder	Battery Box	£16.21 £13.51
16	HV532 17 61-38 Available to backorder	Micro Switch	£15.28 £12.73
22	HV532 00 41-52 Available to backorder	Bulb	£4.28 £3.57
24	HV532 12 47-80 Available to backorder	Cable	£11.47 £9.56
26	HV532 17 51-58 Available to backorder	Fuse	£5.63 £4.69
29	HV532 19 27-49 Available to backorder	Switch.Seat.Dp W/Ramps	£19.20 £16.00
30	HV532 19 33-50 Available to backorder	Ignition Module	£25.09 £20.91
33	HV532 41 19-33 Available to backorder	Key	£10.37 £8.64
34	HV532 11 07-12 Available to backorder	Switch	£16.98 £14.15
40	HV532 42 12-51 Available to backorder	Cable Assy	£148.44 £123.70
43	HV582 04 28-02 In stock	Solenoid	£18.58 £15.48
94	HV532 19 18-34 Available to backorder	Module.Reverse.Ros	£22.63 £18.86
