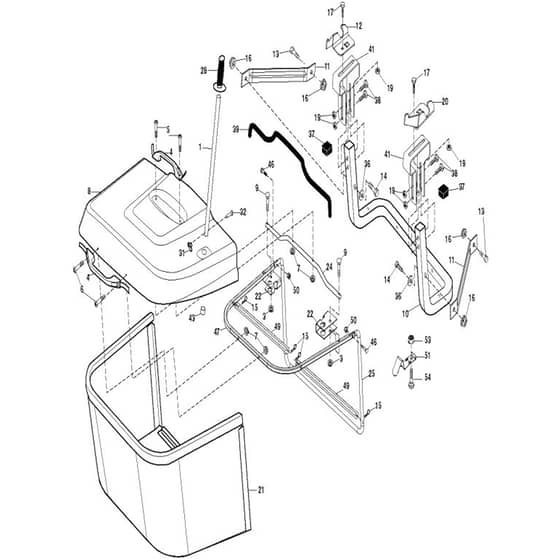

McCulloch M12597HRB - 96061031401 - 2011-04 - Bagger Parts Diagram

Name: McCulloch M12597HRB - 96061031401 - 2011-04 - Bagger Parts Diagram
SKU: m12597hrb_96061031401_2011_04_bagger-group
Price: 1.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M12597HRB - 96061031401 - 2011-04 - Bagger Parts Diagram

Description

McCulloch M12597HRB - 96061031401 - 2011-04 - Bagger Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 42 86-10 Out of stock	Tube	£26.82 £22.35
3	HV586 66 89-01 Out of stock	Locknut	£2.20 £1.83
4	HV532 16 99-16 Out of stock	Handle	£14.69 £12.24
5	HV874 98 10-24 Out of stock	Screw	£2.96 £2.47
8	HV532 44 24-68 Out of stock	Cover	£239.58 £199.65
9	HV872 14 04-18 Out of stock	Bolt	£4.09 £3.41
11	HV532 16 57-19 Out of stock	Rod	£17.36 £14.47
12	HV532 18 88-48 Out of stock	Bracket	£12.35 £10.29
13	HV874 78 06-12 Out of stock	Bolt	£5.18 £4.32
15	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
16	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
17	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
19	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
20	HV532 18 88-47 Out of stock	Bracket	£13.15 £10.96
22	HV532 42 82-36 Out of stock	Bracket	£20.30 £16.92
24	HV532 16 57-83 Out of stock	Frame	£23.58 £19.65
28	HV532 16 57-87 Out of stock	Handle	£8.17 £6.81
31	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
32	HV532 12 68-75 Out of stock	Rivet	£1.98 £1.65
37	HV532 17 54-01 Out of stock	Plug	£6.28 £5.23
38	HV872 01 05-20 Out of stock	Bolt	£5.65 £4.71
39	HV532 41 62-57 Out of stock	Sealing	£47.34 £39.45
41	HV532 43 27-55 Out of stock	Bracket	£20.63 £17.19
43	HV532 17 40-83 Out of stock	Plug	£7.26 £6.05
50	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
54	HV872 11 04-07 Out of stock	Bolt	£2.28 £1.90
