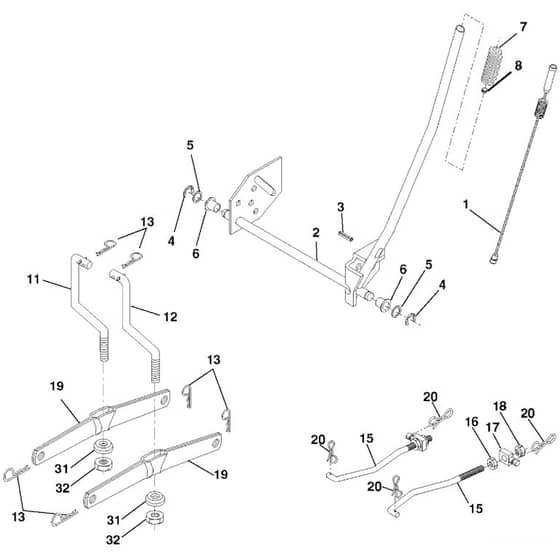

McCulloch M12592RB - 96061016902 - 2008-06 - Mower Lift - Deck Lift Parts Diagram

Name: McCulloch M12592RB - 96061016902 - 2008-06 - Mower Lift - Deck Lift Parts Diagram
SKU: m12592rb_96061016902_2008_06_mower_lift_deck_lift-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M12592RB - 96061016902 - 2008-06 - Mower Lift - Deck Lift Parts Diagram

Description

McCulloch M12592RB - 96061016902 - 2008-06 - Mower Lift - Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 15 94-60 Out of stock	Wire	£21.19 £17.66
2	HV532 15 94-71 Out of stock	Lever	£80.47 £67.06
3	HV532 10 57-67 In stock	Pin Retaining Screw	£6.62 £5.52
4	HV812 00 00-02 Out of stock	Retainer Ring	£0.59 £0.49
5	HV819 21 16-21 Out of stock	Washer	£1.93 £1.61
6	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
13	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
15	HV532 17 32-88 Out of stock	Link	£12.54 £10.45
17	HV532 17 56-89 Out of stock	Bracket	£8.10 £6.75
19	HV532 13 98-68 Out of stock	Lever	£15.32 £12.77
20	HV532 19 42-09 Out of stock	Spring	£4.16 £3.47
31	HV532 16 98-65 Out of stock	Bearing	£5.21 £4.34
