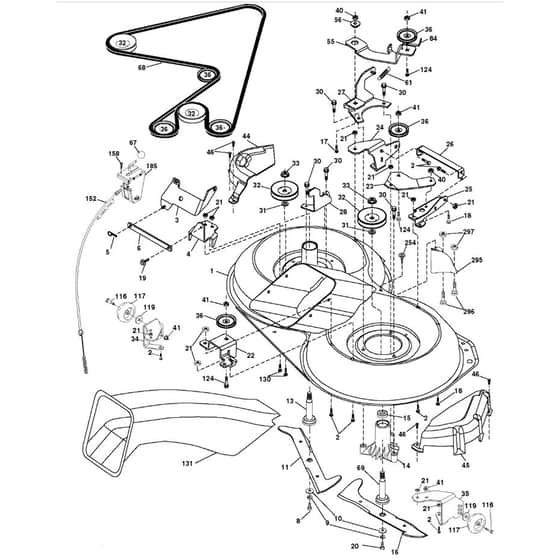

McCulloch M12592RB - 96061016902 - 2008-06 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M12592RB - 96061016902 - 2008-06 - Mower Deck - Cutting Deck Parts Diagram
SKU: m12592rb_96061016902_2008_06_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M12592RB - 96061016902 - 2008-06 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M12592RB - 96061016902 - 2008-06 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV583 11 82-01 Out of stock	Bearing Housing (--)	£125.40 £104.50
0	HV583 34 24-01 Out of stock	Cutting Deck (--)	£817.27 £681.06
1	HV583 11 83-01 Out of stock	Bearing Housing (--)	£135.11 £112.59
2	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
5	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
6	HV532 16 55-57 Out of stock	Rod	£18.64 £15.53
10	HV532 14 02-96 Out of stock	Washer	£6.60 £5.50
11	HV532 18 63-85 In stock	Blade	£28.16 £23.47
14	HV532 12 87-74 Out of stock	Bearing Housing	£62.72 £52.27
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
16	HV532 18 63-86 In stock	Blade	£28.16 £23.47
19	HV532 13 28-27 Out of stock	Spec. Bolt	£5.46 £4.55
23	HV532 16 54-46 Out of stock	Plate	£23.88 £19.90
25	HV532 16 52-44 Out of stock	Bracket	£55.64 £46.37
27	HV532 16 55-68 In stock	Bracket	Was £35.28 £29.40 Special Price £24.13 £20.11
28	HV532 16 55-67 Out of stock	Bracket	£31.80 £26.50
30	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
32	HV532 17 34-35 Out of stock	Pulley	£28.51 £23.76
33	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
36	HV593 78 78-01 In stock	Pulley	£45.84 £38.20
40	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
41	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
45	HV532 17 55-39 Out of stock	Cover	£35.05 £29.21
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
56	HV532 16 57-23 Out of stock	Spacer	£9.58 £7.98
61	HV583 25 26-01 Out of stock	Spring	£16.78 £13.98
67	HV532 10 69-32 Out of stock	Knob	£8.47 £7.06
68	HV532 40 20-08 Out of stock	Belt	£75.35 £62.79
69	HV532 16 54-82 Out of stock	Shaft	£54.40 £45.33
117	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
124	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
130	HV872 11 05-06 Out of stock	Bolt	£3.20 £2.67
131	HV532 16 56-61 Out of stock	Pipe	£94.96 £79.13
158	HV539 99 00-71 Out of stock	Screw	£1.75 £1.46
185	HV532 18 82-34 Out of stock	Cable	£49.96 £41.63
254	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
