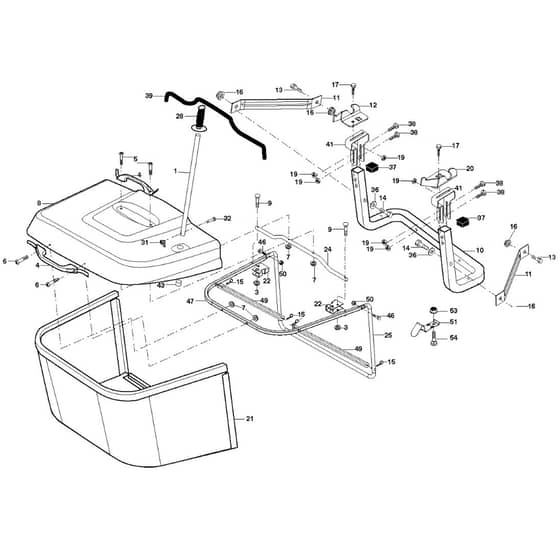

McCulloch M12592RB - 96061016901 - 2008-08 - Bagger Parts Diagram

Name: McCulloch M12592RB - 96061016901 - 2008-08 - Bagger Parts Diagram
SKU: m12592rb_96061016901_2008_08_bagger-group
Price: 1.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M12592RB - 96061016901 - 2008-08 - Bagger Parts Diagram

Description

McCulloch M12592RB - 96061016901 - 2008-08 - Bagger Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV586 66 89-01 Available to backorder	Locknut	£2.98 £2.48
4	HV532 16 99-16 Available to backorder	Handle	£18.12 £15.10
5	HV874 98 10-24 Available to backorder	Screw	£3.62 £3.02
9	HV872 14 04-18 Available to backorder	Bolt	£5.04 £4.20
11	HV532 16 57-19 Available to backorder	Rod	£21.36 £17.80
12	HV532 18 88-48 Available to backorder	Bracket	£12.32 £10.27
13	HV874 78 06-12 Available to backorder	Bolt	£6.34 £5.28
15	HV596 91 96-01 Available to backorder	Retainer Ring	£4.02 £3.35
16	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
17	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
19	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
20	HV532 18 88-47 Available to backorder	Bracket	£16.18 £13.48
24	HV532 16 57-83 Available to backorder	Frame	£28.82 £24.02
28	HV532 16 57-87 Available to backorder	Handle	£10.09 £8.41
31	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
32	HV532 12 68-75 Available to backorder	Rivet	£2.40 £2.00
37	HV532 17 54-01 Available to backorder	Plug	£6.98 £5.82
38	HV872 01 05-20 Available to backorder	Bolt	£7.12 £5.93
43	HV532 17 40-83 Available to backorder	Plug	£9.06 £7.55
50	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
54	HV872 11 04-07 Available to backorder	Bolt	£2.84 £2.37
