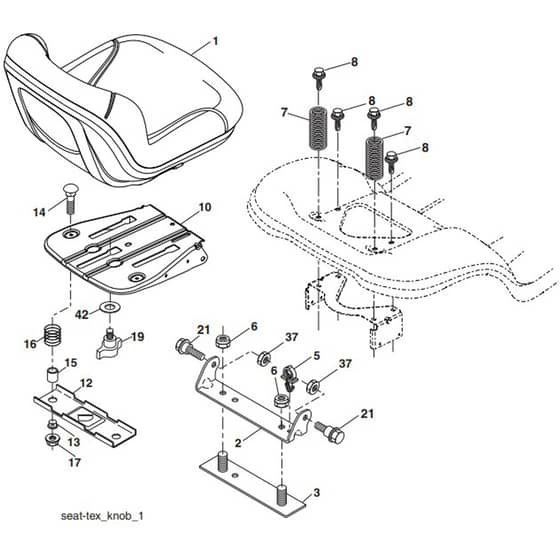

McCulloch M12530 - 96041017600 - 2010-02 - Seat Parts Diagram

Name: McCulloch M12530 - 96041017600 - 2010-02 - Seat Parts Diagram
SKU: m12530_96041017600_2010_02_seat-group
Price: 0.75 GBP
Availability: InStock

Part No. m12530_96041017600_2010_02_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M12530 - 96041017600 - 2010-02 - Seat Parts Diagram

Description

McCulloch M12530 - 96041017600 - 2010-02 - Seat Parts Diagram

	Part No.	Details
1	HV532 19 75-11 Available to backorder	Seat	£244.32 £203.60
3	HV532 14 06-75 Available to backorder	Strap	£8.34 £6.95
5	HV532 14 50-06 Available to backorder	Clip	£0.90 £0.75
7	HV587 61 33-01 Available to backorder	Spring	£20.50 £17.08
8	HV532 17 18-77 Available to backorder	Bolt	£5.02 £4.18
10	HV532 44 18-05 Available to backorder	Seat	£97.44 £81.20
13	HV532 12 12-48 Available to backorder	Bushing	£6.01 £5.01
14	HV872 05 04-12 Available to backorder	Bolt	£3.59 £2.99
15	HV532 13 43-00 Available to backorder	Spacer	£4.50 £3.75
17	HV586 66 89-01 Available to backorder	Locknut	£2.94 £2.45
19	HV532 19 93-72 Available to backorder	Knob	£9.62 £8.02
21	HV532 17 18-52 Available to backorder	Bolt	£5.16 £4.30
37	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
42	HV532 19 93-71 Available to backorder	Washer	£8.98 £7.48
