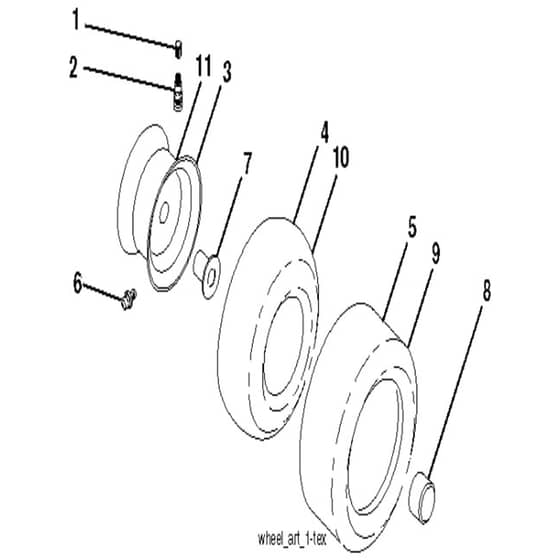

McCulloch M125107T - 96041029001 - 2012-12 - Wheels and Tyres Parts Diagram

Name: McCulloch M125107T - 96041029001 - 2012-12 - Wheels and Tyres Parts Diagram
SKU: m125107t_96041029001_2012_12_wheels_and_tyres-group
Price: 4.36 GBP
Availability: InStock

Part No. m125107t_96041029001_2012_12_wheels_and_tyres-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125107T - 96041029001 - 2012-12 - Wheels and Tyres Parts Diagram

Description

McCulloch M125107T - 96041029001 - 2012-12 - Wheels and Tyres Parts Diagram

	Part No.	Details
1	HV532 05 91-92 Available to backorder	Cap Valve	£6.29 £5.24
2	HV532 06 51-39 Available to backorder	Nipple	£5.23 £4.36
4	HV532 05 99-04 Available to backorder	Hose (Service Item Only)	£26.74 £22.28
5	HV532 12 20-73 Available to backorder	Tyre Front	£62.04 £51.70
7	HV532 00 90-40 In stock	Bearing (Front Wheel Only)	£18.38 £15.32
8	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
9	HV532 13 27-03 Available to backorder	Tyre Rear	£74.16 £61.80
