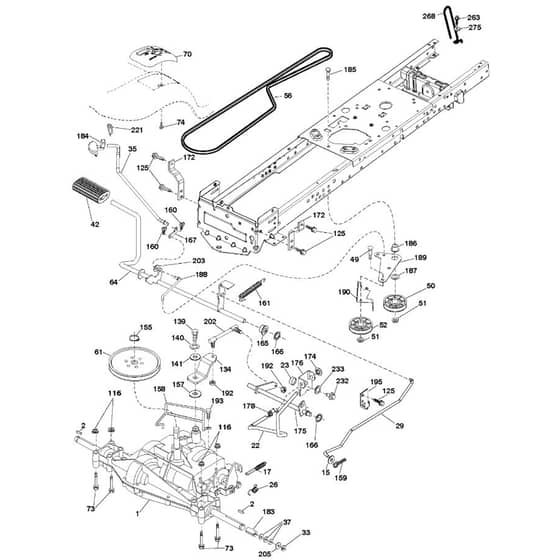

McCulloch M125107 - 96041026900 - 2011-09 - Drive Parts Diagram

Description

McCulloch M125107 - 96041026900 - 2011-09 - Drive Parts Diagram

	Part No.	Details
2	HV532 12 35-83 In stock	Key	£7.18 £5.98
17	HV532 19 72-97 In stock	Spring	£12.84 £10.70
22	HV532 19 76-60 Available to backorder	Rod	£60.68 £50.57
26	HV532 19 74-55 In stock	Spring	£4.18 £3.48
29	HV532 19 72-67 Available to backorder	Rod	£27.55 £22.96
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV532 40 10-31 Available to backorder	Rod	£12.82 £10.68
37	HV532 12 17-49 In stock	Washer	£2.82 £2.35
49	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
51	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV532 19 43-46 Available to backorder	Belt	£50.98 £42.48
61	HV532 12 36-66 Available to backorder	Pulley	£88.92 £74.10
64	HV532 19 62-00 Available to backorder	Shaft	£100.32 £83.60
70	HV532 41 12-90 Available to backorder	Console	£27.55 £22.96
73	HV874 49 05-40 Available to backorder	Bolt	£7.06 £5.88
74	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
116	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
125	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
134	HV532 19 78-57 Available to backorder	Rod	£15.38 £12.82
140	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
141	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
155	HV812 00 00-28 Available to backorder	Clip	£0.56 £0.47
160	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
165	HV532 19 62-12 Available to backorder	Bushing	£10.26 £8.55
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
174	HV532 19 72-89 Available to backorder	Nut	£2.05 £1.71
183	HV532 13 70-57 Available to backorder	Spacer	£9.79 £8.16
184	HV532 44 14-07 Available to backorder	Brake	£11.28 £9.40
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV532 19 43-23 Available to backorder	Link	£7.96 £6.63
189	HV532 19 43-17 Available to backorder	Plate	£14.74 £12.28
203	HV734 11 63-01 In stock	Washer	£2.63 £2.19
205	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
263	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
