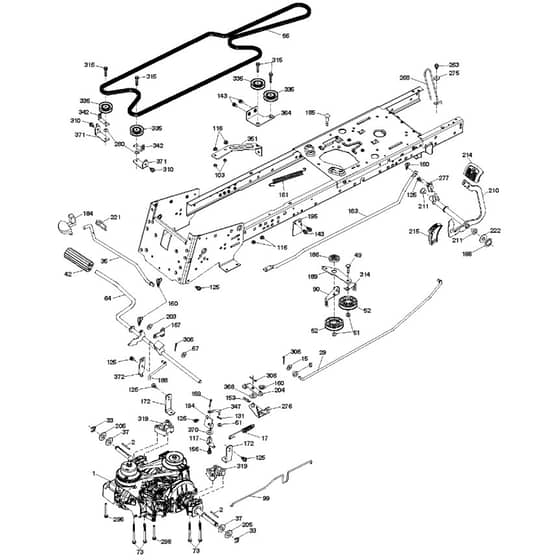

McCulloch M125-97TC - 96051011300 - 2013-06 - Drive Parts Diagram

Description

McCulloch M125-97TC - 96051011300 - 2013-06 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
6	HV532 12 42-08 Available to backorder	Mandrel	£232.20 £193.50
17	HV580 32 52-01 Available to backorder	Spring	£12.28 £10.23
29	HV581 18 74-01 Available to backorder	Rod	£34.28 £28.57
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV532 40 10-31 Available to backorder	Rod	£12.94 £10.78
37	HV532 18 89-67 In stock	Washer	£5.04 £4.20
49	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
51	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
56	HV584 36 23-01 Available to backorder	Belt	£99.76 £83.13
64	HV532 44 83-53 Available to backorder	Shaft	£75.04 £62.53
67	HV734 11 72-01 Available to backorder	Washer	£2.02 £1.68
73	HV580 83 04-01 Available to backorder	Bolt	£2.56 £2.13
99	HV581 28 09-01 Available to backorder	Rod	£9.06 £7.55
116	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
117	HV580 38 29-01 Available to backorder	Bell Crank	£14.74 £12.28
125	HV532 42 88-67 Available to backorder	Screw	£4.02 £3.35
143	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
156	HV580 36 90-01 Available to backorder	Bolt	£2.20 £1.83
160	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
161	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
163	HV581 18 73-01 Available to backorder	Rod	£22.64 £18.87
166	HV532 42 91-64 Available to backorder	Nut	£1.82 £1.52
167	HV532 40 52-57 Available to backorder	Latch	£5.82 £4.85
172	HV532 44 82-76 Available to backorder	Strap	£9.92 £8.27
184	HV532 44 14-07 Available to backorder	Brake	£11.18 £9.32
185	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV532 19 43-23 Available to backorder	Link	£7.86 £6.55
194	HV583 87 86-01 Available to backorder	Bracket	£11.00 £9.17
195	HV580 45 69-02 Available to backorder	Bracket	£7.00 £5.83
203	HV734 11 63-01 In stock	Washer	£2.54 £2.12
205	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
210	HV532 44 82-70 Available to backorder	Pedal	£54.68 £45.57
211	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
215	HV532 44 82-54 Available to backorder	Pad	£12.28 £10.23
221	HV532 40 31-87 Available to backorder	Spring	£3.88 £3.23
222	HV879 21 20-10 Available to backorder	Washer	£5.68 £4.73
263	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
277	HV532 44 85-00 Available to backorder	Link	£9.52 £7.93
296	HV532 42 04-71 Available to backorder	Screw	£6.46 £5.38
306	HV876 02 04-16 Available to backorder	Split Pin	£1.86 £1.55
310	HV817 49 06-08 Available to backorder	Screw	£5.32 £4.43
315	HV817 58 05-20 Available to backorder	Bolt	£5.32 £4.43
319	HV580 45 74-01 Available to backorder	Spacer	£11.00 £9.17
335	HV532 19 95-34 Available to backorder	Pulley	£21.74 £18.12
342	HV580 96 10-02 Available to backorder	Keeper	£5.44 £4.53
347	HV580 32 51-01 Available to backorder	Rod	£7.76 £6.47
368	HV819 17 19-12 Available to backorder	Washer	£4.66 £3.88
370	HV878 12 16-32 Available to backorder	Washer	£2.44 £2.03
371	HV580 96 07-02 Available to backorder	Bracket	£9.72 £8.10
