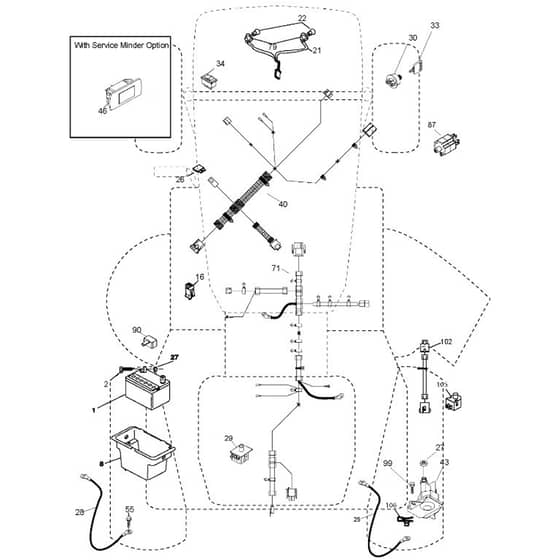

McCulloch M125-97T - 96041028800 - 2012-11 - Electrical Parts Diagram

Name: McCulloch M125-97T - 96041028800 - 2012-11 - Electrical Parts Diagram
SKU: m125_97t_96041028800_2012_11_electrical-group
Price: 1.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-97T - 96041028800 - 2012-11 - Electrical Parts Diagram

Description

McCulloch M125-97T - 96041028800 - 2012-11 - Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV577 04 16-01 Available to backorder	Battery	£119.98 £99.98
2	HV874 76 04-12 Available to backorder	Bolt	£2.58 £2.15
8	HV532 19 32-28 Available to backorder	Box	£56.94 £47.45
16	HV532 17 61-38 Available to backorder	Micro Switch	£14.32 £11.93
21	HV532 40 02-52 Available to backorder	Harness	£27.82 £23.18
22	HV532 00 41-52 Available to backorder	Bulb	£4.49 £3.74
25	HV581 49 80-01 Available to backorder	Cable	£15.54 £12.95
26	HV532 17 51-58 Available to backorder	Fuse	£5.68 £4.73
29	HV532 40 15-45 Available to backorder	Switch	£24.12 £20.10
30	HV532 19 33-50 Available to backorder	Ignition Module	£31.08 £25.90
33	HV532 41 19-35 Available to backorder	Key	£10.48 £8.73
34	HV532 11 07-12 Available to backorder	Switch	£17.14 £14.28
40	HV581 02 31-01 Available to backorder	Harness	£65.38 £54.48
43	HV582 04 28-02 In stock	Solenoid	£21.96 £18.30
71	HV581 02 30-01 Available to backorder	Harness	£79.96 £66.63
87	HV532 19 78-02 Available to backorder	Switch	£17.78 £14.82
90	HV532 43 53-95 Available to backorder	Terminal Cover	£6.34 £5.28
99	HV817 67 04-12 Available to backorder	Screw	£5.32 £4.43
102	HV581 02 34-01 Available to backorder	Harness	£20.72 £17.27
105	HV532 40 75-68 Available to backorder	Switch	£16.34 £13.62
106	HV532 17 48-14 Available to backorder	Nut	£2.06 £1.72
