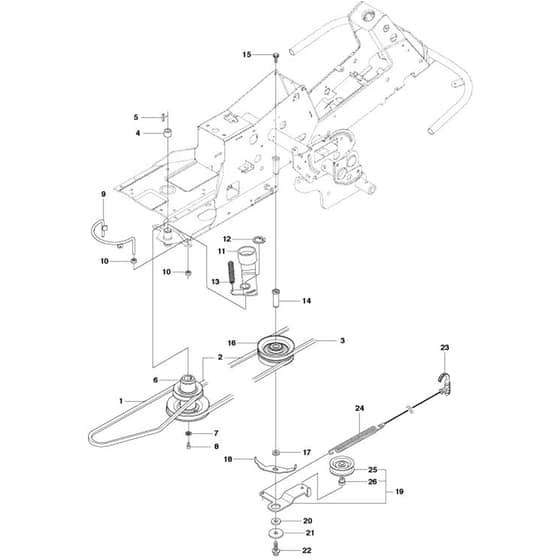

McCulloch M125-94FH - 967028402 - 2018 - Transmission (1) Parts Diagram

Name: McCulloch M125-94FH - 967028402 - 2018 - Transmission (1) Parts Diagram
SKU: m125_94fh_967028402_2018_transmission_1_-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-94FH - 967028402 - 2018 - Transmission (1) Parts Diagram

Description

McCulloch M125-94FH - 967028402 - 2018 - Transmission (1) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV589 53 12-01 In stock	Belt	£27.79 £23.16
2	HV599 67 59-02 Out of stock	Belt	£44.93 £37.44
3	HV594 97 78-01 In stock	Belt	£43.52 £36.27
4	HV506 50 92-01 Out of stock	Spacing Sleeve	£9.66 £8.05
5	HV506 55 59-01 Out of stock	Wedge	£4.54 £3.78
6	HV535 48 24-01 Out of stock	Pulley	£103.06 £85.88
8	HV506 55 60-02 Out of stock	Screw Unc	£7.22 £6.02
9	HV510 25 78-01 Out of stock	Belt Guide	£17.51 £14.59
11	HV535 48 44-01 Out of stock	Belt Tensioner Assy	£46.08 £38.40
12	HV735 31 26-00 Out of stock	Circlip	£0.73 £0.61
13	HV506 66 56-01 In stock	Spring	£14.05 £11.71
15	HV506 67 54-02 Out of stock	Screw Ehhfm	£6.49 £5.41
16	HV535 48 22-01 Out of stock	Pulley	£82.92 £69.10
17	HV506 77 57-01 Out of stock	Washer	£5.39 £4.49
18	HV544 40 53-01 Out of stock	Belt Guide	£10.22 £8.52
19	HV544 22 81-01 Out of stock	Belt Tensioner Assy	£55.04 £45.87
20	HV506 59 75-01 Out of stock	Washer	£4.38 £3.65
21	HV506 98 25-01 Out of stock	Washer	£20.30 £16.92
22	HV506 57 01-05 Out of stock	Screw Ehhfm	£0.80 £0.67
23	HV544 23 95-01 Out of stock	Handle Assy	£11.20 £9.33
24	HV544 23 88-01 Out of stock	Spring	£15.06 £12.55
25	HV586 10 43-02 Out of stock	Belt Tensioner Wheel (24)	£16.86 £14.05
26	HV506 97 64-01 Out of stock	Bushing (24)	£10.76 £8.97
