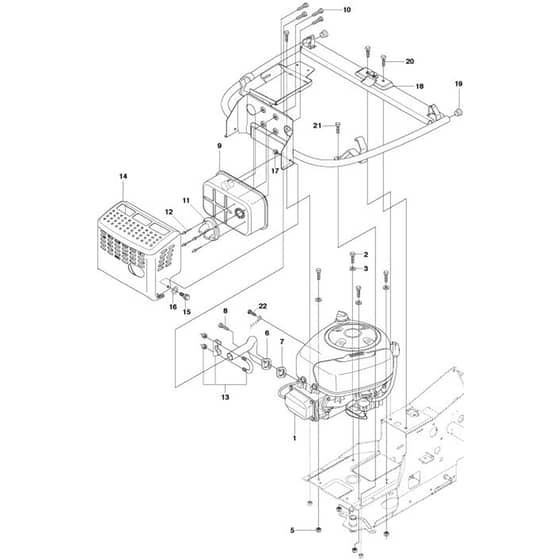

McCulloch M125-94FH - 967028401 - 2014-03 - Engine Parts Diagram

Name: McCulloch M125-94FH - 967028401 - 2014-03 - Engine Parts Diagram
SKU: m125_94fh_967028401_2014_03_engine-group
Price: 1.49 GBP
Availability: InStock

Part No. m125_94fh_967028401_2014_03_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-94FH - 967028401 - 2014-03 - Engine Parts Diagram

Description

McCulloch M125-94FH - 967028401 - 2014-03 - Engine Parts Diagram

	Part No.	Details
1	HV580 91 92-01 Available to backorder	Engine	£688.56 £573.80
2	HV725 24 57-51 Available to backorder	Screw	£5.51 £4.59
3	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
6	HV580 66 13-01 Available to backorder	Exhaust Pipe	£44.11 £36.76
7	HV506 91 45-01 Available to backorder	Gasket	£7.03 £5.86
8	HV506 55 63-01 Available to backorder	Screw Unc	£3.59 £2.99
9	HV535 40 08-01 Available to backorder	Muffler Assy	£220.92 £184.10
10	HV725 23 68-61 Available to backorder	Screw Ehhft	£3.59 £2.99
11	HV584 61 74-01 Available to backorder	Deflector	£224.88 £187.40
12	HV722 79 23-09 Available to backorder	Rivet	£2.94 £2.45
13	HV506 66 84-01 Available to backorder	Clamp Assy	£1.79 £1.49
15	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
16	HV506 83 94-01 Available to backorder	Spring Washer	£2.86 £2.38
17	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
20	HV506 57 01-03 Available to backorder	Screw Ehhfm	£5.02 £4.18
21	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.50 £3.75
22	HV506 55 63-02 Available to backorder	Screw Unc	£3.07 £2.56
